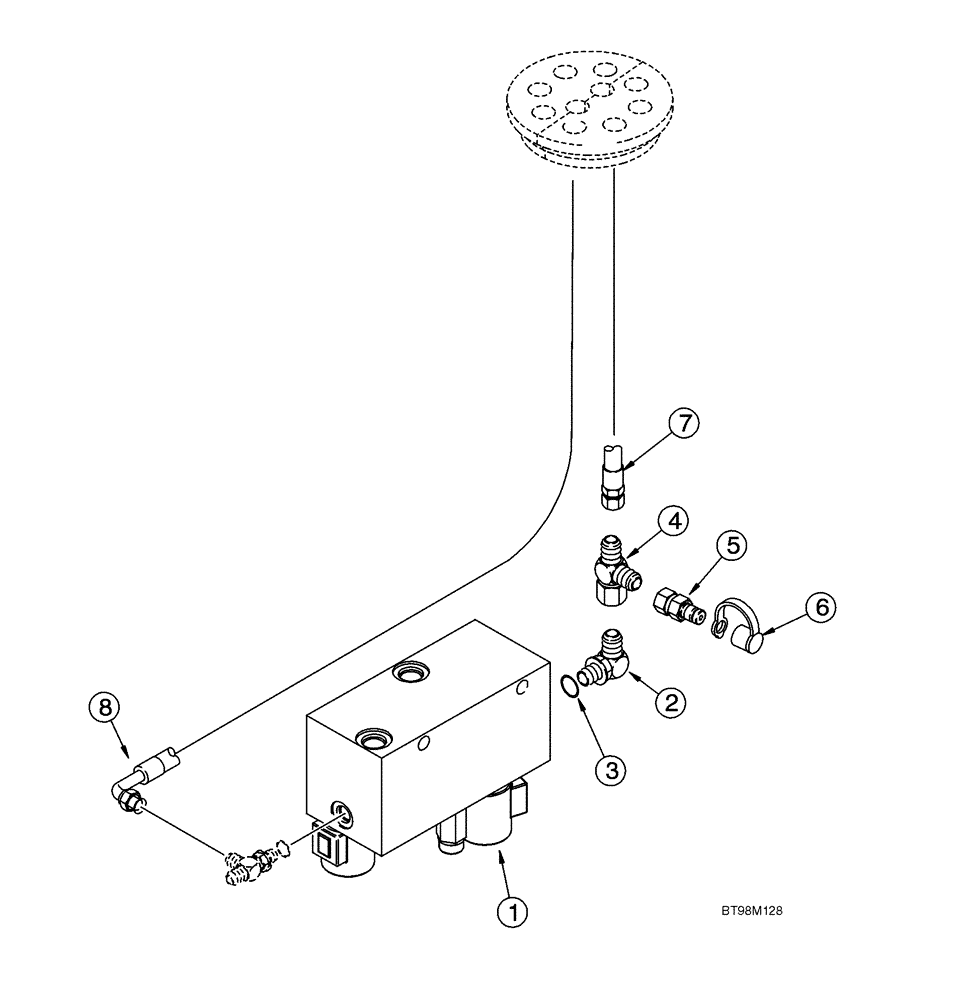

Запчасти Case 921C (08-34) - HYDRAULICS - LOADER CONTROL, REMOTE (Dec 3 2009 2:14PM) (08) - HYDRAULICS

SUPPLY AND RETURN TO HYDRAULIC RESERVOIR

1шт.

1

407165A1

VALVE

1шт.

Pressure

1шт.

Combination Valve

1шт.

See Figure 07-06, 08-47

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or

1шт.

Incl. 3

1шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

5

101792A1

COUPLING

1шт.

Diagnostic

1шт.

6

H434163

DUST CAP

1шт.

7

232862A1

HOSE ASSY.

1189 mm (46-13/16 in)

1шт.

Pressure

1шт.

8

232861A1

HOSE ASSY.

1314 mm (51-3/4 in)

1шт.

Return

1шт.

Attaches to Tee at Combination Valve

1шт.

See Figure 07-09, REF 24

1шт.

If Used

1шт.

8

293988A1

HOSE ASSY.

1400 mm (55-1/8 in)

1шт.

Return

1шт.

Attaches to Tee at Combination Valve

1шт.

See Figure 07-09, REF 24

1шт.

If Used

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
