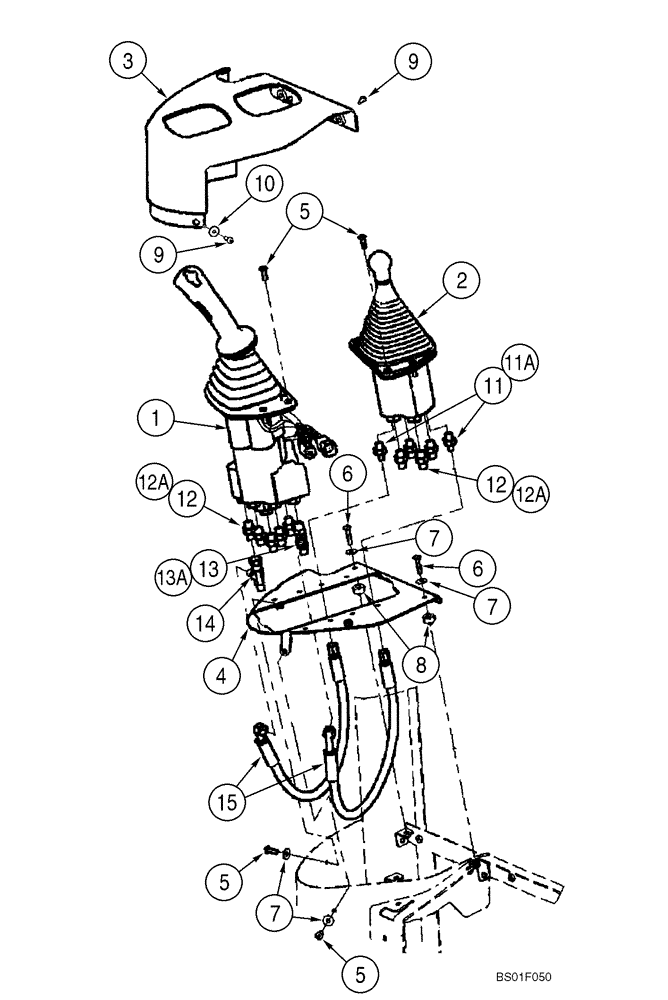

Запчасти Case 921C (08-32) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

DUAL LEVER WITH TWO SPOOL VALVE

1шт.

If Used

1шт.

1

419639A1

VALVE

1шт.

Single Lever Remote

1шт.

Two Spool

1шт.

See Figure 08-36

1шт.

2

299238A1

VALVE

1шт.

Auxiliary

1шт.

Single Lever Remote

1шт.

Two Spool

1шт.

See Figure 08-45

1шт.

3

400485A1

COVER

1шт.

4

418184A1

TOP

1шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

10шт.

6

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

2шт.

9

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

10

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

11

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

Incl. 11A

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

9шт.

Incl. 12A

1шт.

13

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

Incl. 13A

1шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

15

300016A1

HOSE ASSY.

483 mm (19-1/16 in)

2шт.

11a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
