Запчасти Case 921C (08-31) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

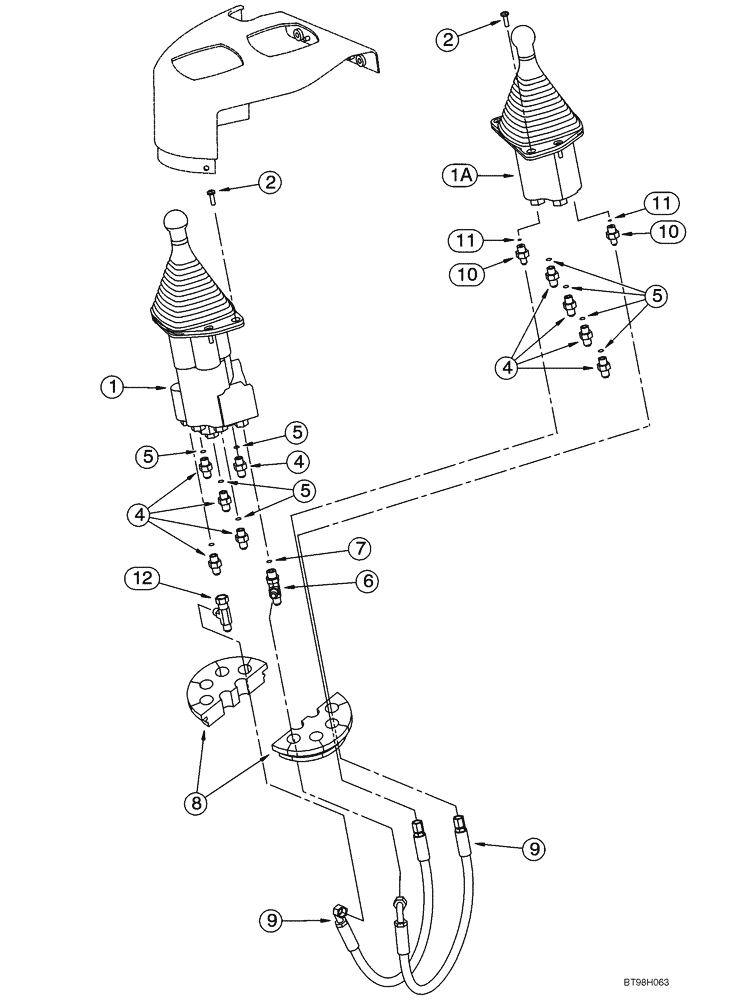

Схема запчастей Case 921C - (08-31) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS
5
2
7
4
9
6
5
10
8
10
5
4
1a
5
4
2
11
9
1
12
11

Артикул

Название

Примечание

Количество

DUAL LEVER WITH THREE SPOOL VALVE

1шт.

If Used

1шт.

1

292085A1

VALVE

Single Lever Remote

1шт.

Two Spool

1шт.

See Figure 08-35

1шт.

1a

299238A1

VALVE

1шт.

Auxiliary

1шт.

Single Lever Remote

1шт.

Two Spool

1шт.

See Figure 08-45

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

8шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

9шт.

Incl. 5

1шт.

6

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

Incl. 7

1шт.

8

232388A1

GROMMET

2шт.

9

300016A1

HOSE ASSY.

483 mm (19-1/16 in)

2шт.

10

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

Incl. 11

1шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
