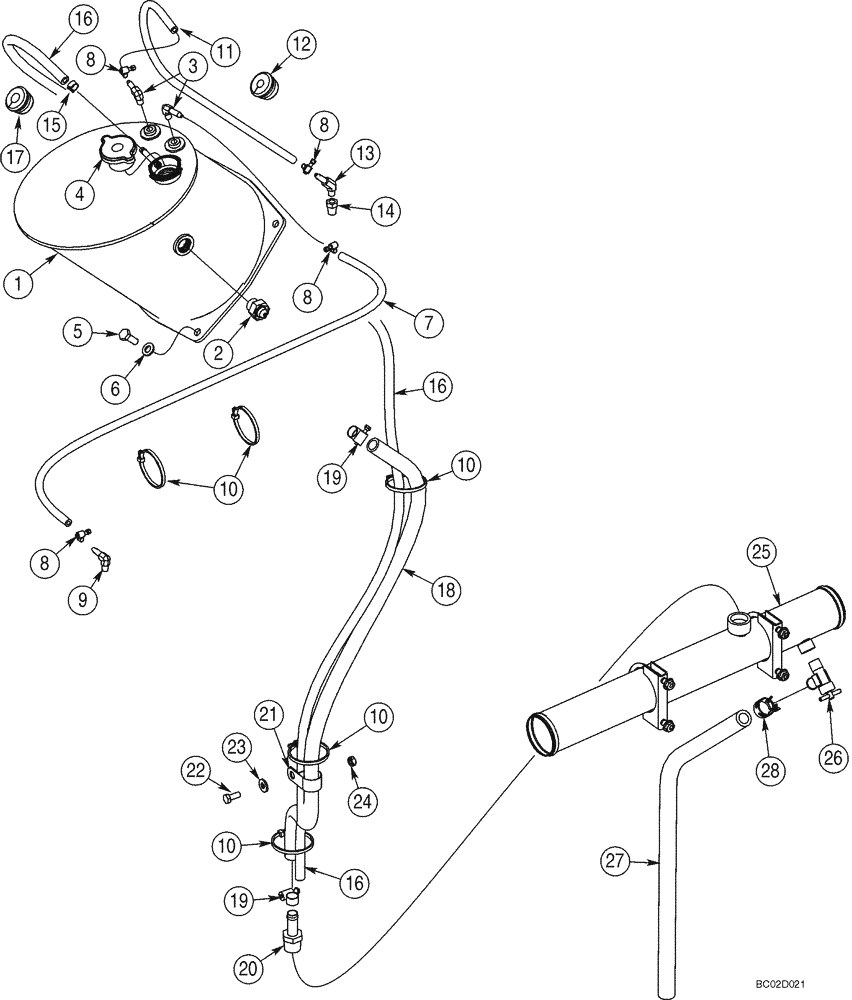

Запчасти Case 921C (02-04) - TANK, SURGE - MOUNTING AND CONNECTIONS (02) - ENGINE

429186A1

TANK

Surge; Incl. 1 - 4

1шт.

1

417821A3

TANK

1шт.

2

406721A1

GAUGE

1/2 PT; Sight

2шт.

3

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Use Loctite No. 592

2шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

4

A170241

RADIATOR CAP

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

7

31-1184

HOSE,6.4 mm ID x 914.40 mm

915 mm (36 in); Cut From 31-1182

1шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

9

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Use Loctite No. 592

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

11

31-1442

HOSE,0.25" ID x 28.00"

711 mm (28 in); Cut From 31-1182

1шт.

12

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

13

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Use Loctite No. 592

1шт.

14

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

16

366664A1

HOSE,7.9 mm ID x 2260.60 mm

2260 mm (89 in); Cut From 31-2855

1шт.

17

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

1шт.

18

444750A1

HOSE,15.90 mm ID x 1220.00 mm

Cut from Bulk

1шт.

19

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

20

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

Use Loctite No. 592

1шт.

21

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

22

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

23

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

419356A2

TUBE

1шт.

26

301803R1

SHUT-OFF VALVE

1шт.

27

32-332

HOSE

666 mm (26-1/4 in); Cut From 97252CX

1шт.

28

1954736C1

HOSE CLAMP,#24

1шт.
