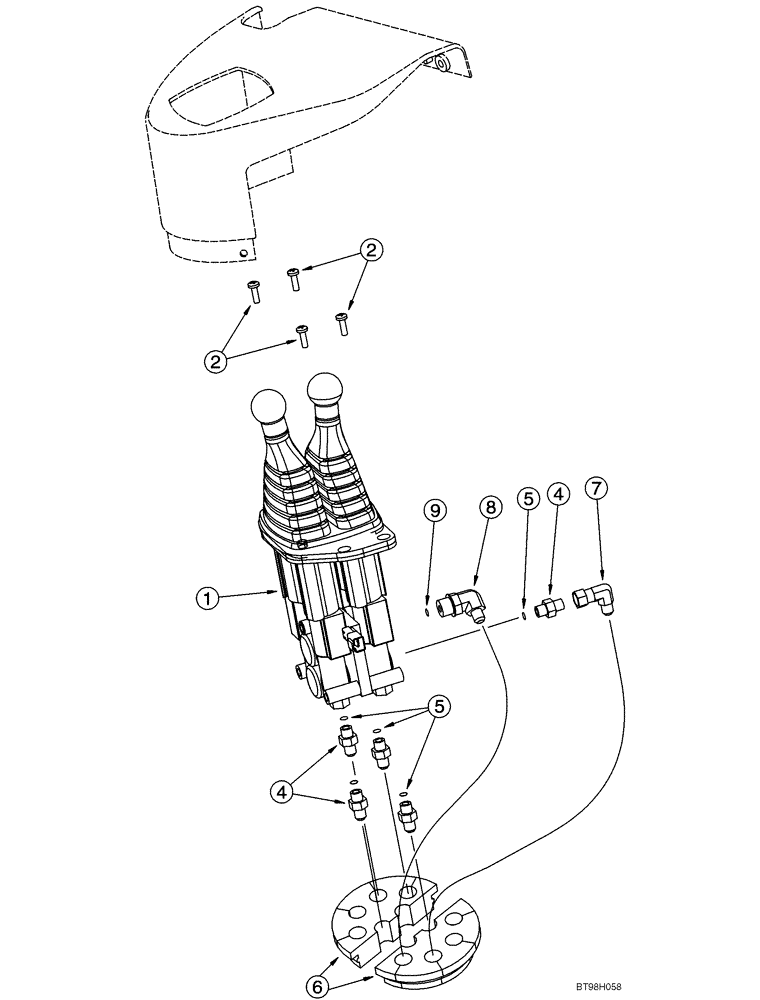

Запчасти Case 921C (08-23) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

DUAL LEVER WITH TWO SPOOL VALVE

1шт.

If Used

1шт.

1

292086A1

VALVE

1шт.

Dual Lever Remote

1шт.

See Figure 08-38

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

5шт.

Incl. 5

1шт.

6

232388A1

GROMMET

2шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

1шт.

Incl. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
