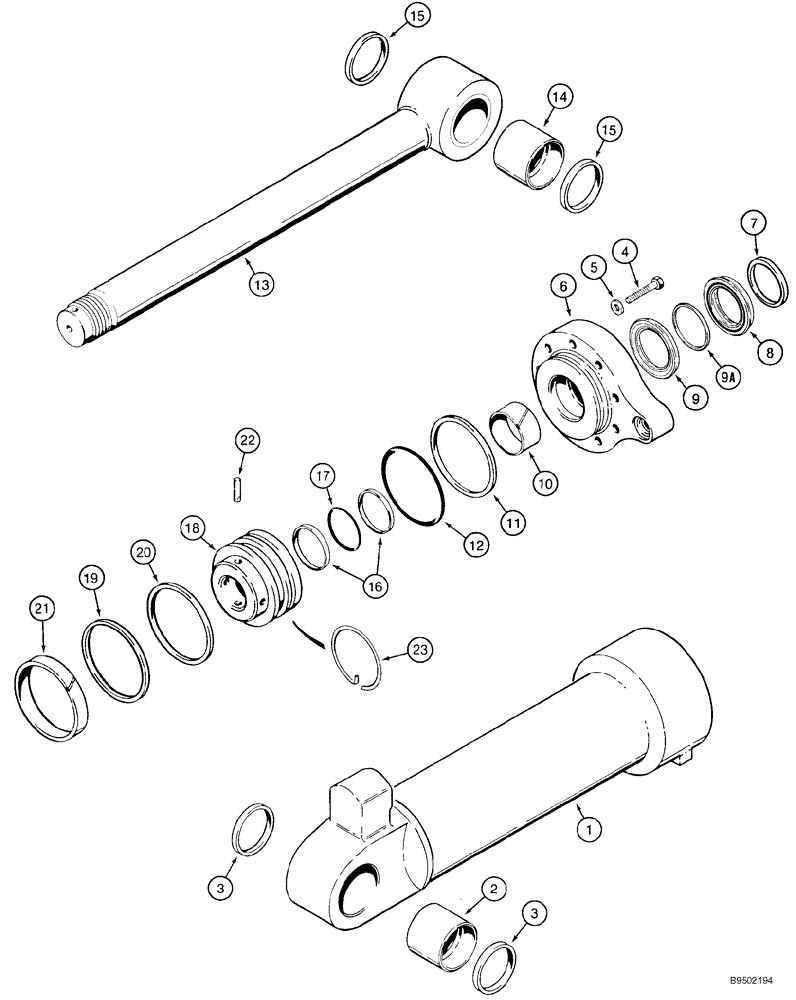

Запчасти Case 921C (08-20) - CYLINDER ASSY - LOADER BUCKET (Aug 2 2006 8:12AM) (08) - HYDRAULICS

1346171C3

CYLINDER ASSY.

203 ID x 745 strk

2шт.

Incl. 1-23

1шт.

Cylinder Assembly Part Number Stamped On Some Cylinder Glands Or Tubes

1шт.

1

1346172C1

HYD CYL SLEEVE

1шт.

Incl. 2

1шт.

2

L127807

BUSHING

1шт.

3

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

2шт.

4

26-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

7/8 x 3-1/2; 8

9шт.

5

396-31094

WASHER,15/16" x 1 3/4" x .219", HDN

9шт.

NSS

NOT SOLD SEPARAT

Gland

1шт.

Cylinder

1шт.

Incl. 6-12

1шт.

Order Components

1шт.

6

1346186C2

CYLINDER END CAP

1шт.

7

S108245

WIPER SEAL

1шт.

1542883C1

SEAL KIT

1шт.

Incl. 8-9A

1шт.

NSS

1шт.

Order 1346357C2 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

1шт.

Rod

1шт.

Order 1346357C2 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

Buffer Seal

1шт.

Order 1346357C2 Seal Kit

1шт.

1346357C2

SEAL KIT

1шт.

Incl. 7-12, 16, 17, 19-21

1шт.

9a

NSS

NOT SOLD SEPARAT

Seal

1шт.

Order 1346357C2 Seal Kit

1шт.

10

1346213C1

BUSHING

1шт.

11

1346211C1

BACK-UP RING,192.35mm ID x 1.9mm Width

1шт.

12

238-6367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 6, 90 Duro

1шт.

13

1346173C2

PISTON ROD

101 mm dia

1шт.

Incl. 14

1шт.

14

L127807

BUSHING

1шт.

15

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

2шт.

16

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

17

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

18

1346182C1

PISTON

1шт.

19

1346359C1

SEALING RING

1шт.

20

1346340C1

SEALING RING

1шт.

21

1346212C1

RING

1шт.

22

G106602

LOCK PIN

1шт.

23

1346328C1

CIRCLIP

1шт.

1346357C2

SEAL KIT

1шт.

Incl. 7-12, 16, 17, 19-21

1шт.
