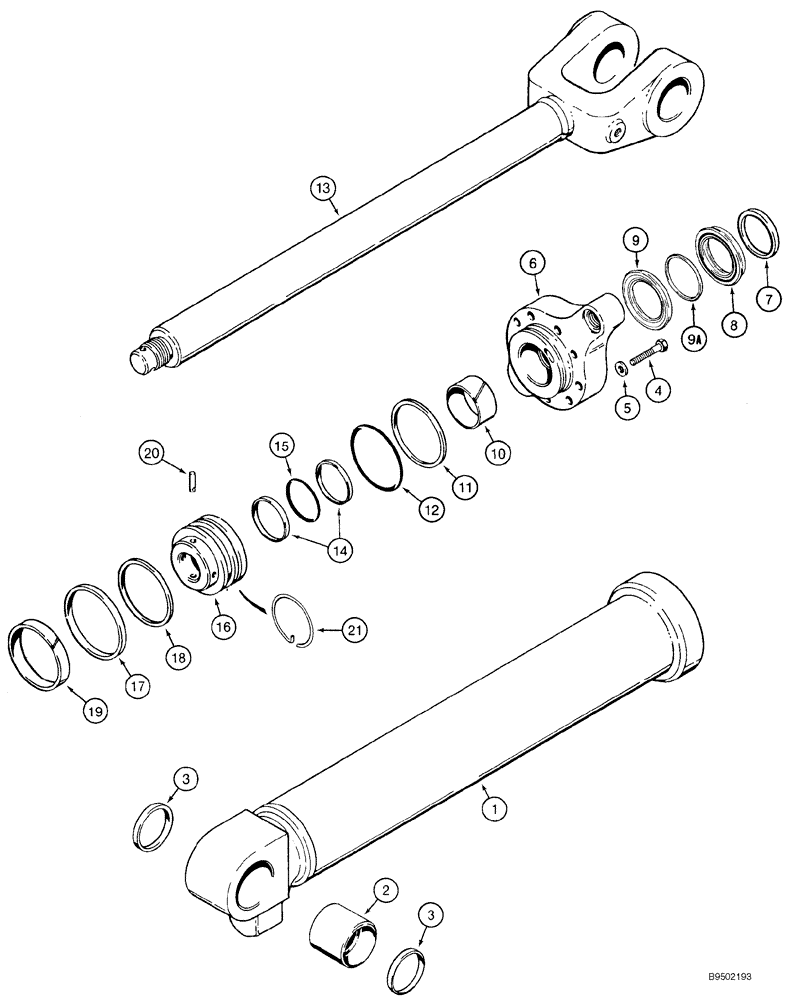

Запчасти Case 921C (08-19) - CYLINDER ASSY - LOADER LIFT (Oct 17 2006 3:35PM) (08) - HYDRAULICS

1986603C1

CYLINDER ASSY.

178 ID x 867 strk

2шт.

Incl. 1-21

1шт.

Cylinder Assembly Part Number Stamped On Some Cylinder Glands Or Tubes

1шт.

1

1542892C1

HYD CYL SLEEVE,177.8 mm ID

1шт.

Incl. 2

1шт.

2

L127972

BUSHING

1шт.

3

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

2шт.

4

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

9шт.

5

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

9шт.

NSS

NOT SOLD SEPARAT

Gland

1шт.

Cylinder

1шт.

Incl. 6-11

1шт.

Order Components

1шт.

6

1986604C1

CYLINDER END CAP

1шт.

7

S108245

WIPER SEAL

1шт.

1542883C1

SEAL KIT

1шт.

Incl. 8-9A

1шт.

NSS

1шт.

Order 1986920C2 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

Order 1986920C2 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal

1шт.

Order 1986920C2 Seal Kit

1шт.

1986920C2

SEAL KIT

1шт.

Incl. 7-12, 14, 15, 17-19

1шт.

9a

NSS

NOT SOLD SEPARAT

Seal

1шт.

Order 1986920C2 Seal Kit

1шт.

10

1346213C1

BUSHING

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

1шт.

12

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

13

1986623C1

PISTON ROD

101 mm dia

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

15

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

16

1986627C1

PISTON

1шт.

17

S110157

SEAL,172.11mm ID x 179.58mm OD x 9.32mm Thk

1шт.

18

S110156

SEALING RING,6.86mm Thk x 157.86mm ID

1шт.

19

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

1шт.

20

G106602

LOCK PIN

1шт.

21

1346328C1

CIRCLIP

1шт.

1986920C2

SEAL KIT

1шт.

Incl. 7-12, 14, 15, 17-19

1шт.
