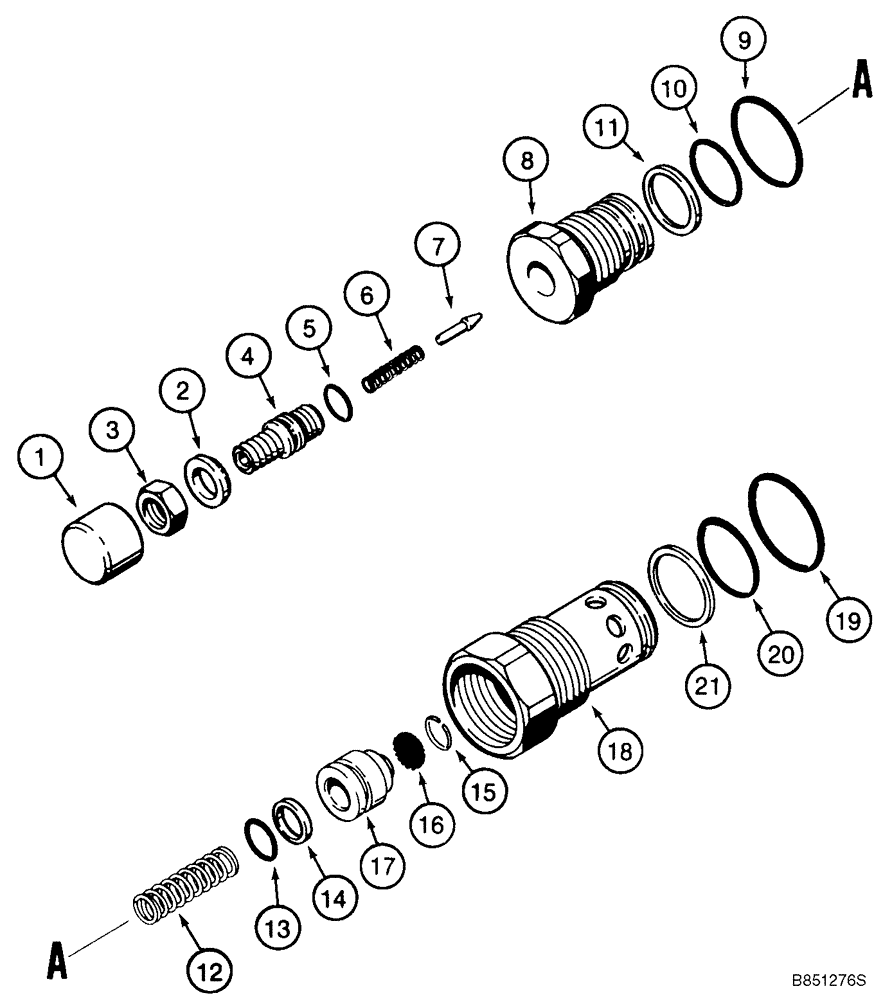

Запчасти Case 921C (08-18) - VALVE ASSY - RELIEF, CIRCUIT (08) - HYDRAULICS

N9469

VALVE

1шт.

Circuit Relief

1шт.

Loader Control

1шт.

Incl. 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

Cover

1шт.

2

N9475

WASHER

1шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8 NF

1шт.

4

N9463

ADJUSTMENT SCREW

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

6

N9465

SPRING

1шт.

7

N9464

PLUNGER

1шт.

8

N9462

BODY

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

11

A25298

RING

1шт.

12

N9457

WASHER

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

1шт.

15

N9473

RING, SNAP

RING SNAP

1шт.

16

N9474

VALVE POPPET

1шт.

17

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

18

NSS

NOT SOLD SEPARAT

Body

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

21

N9459

BACK-UP RING

1шт.
