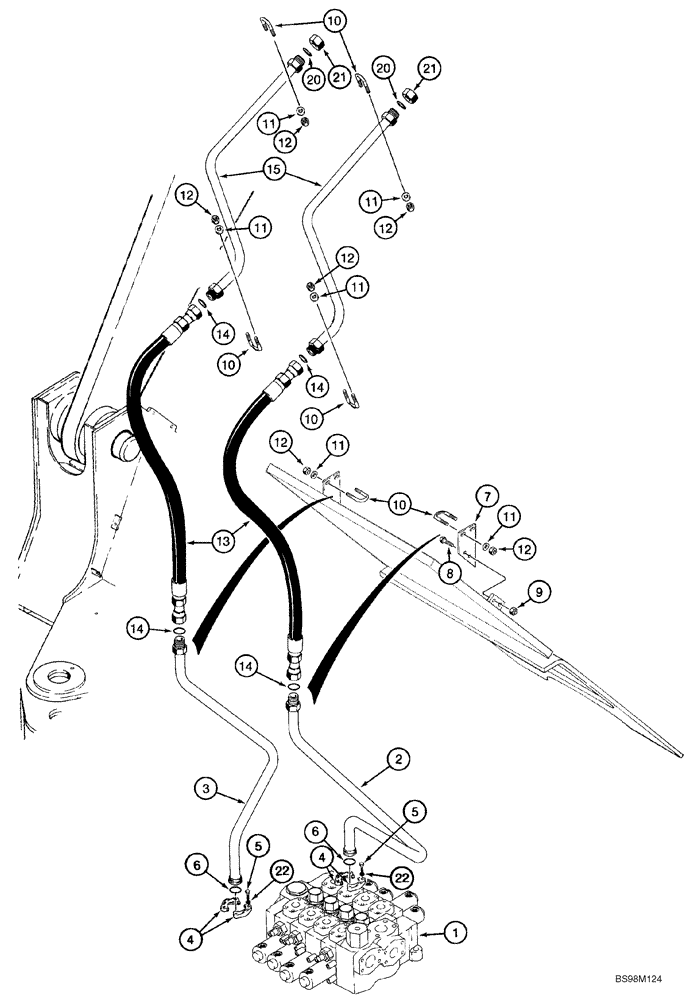

Запчасти Case 921C (08-09) - HYDRAULICS - LOADER AUXILIARY (Jun 15 2009 9:56AM) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy

1шт.

Control, Loader

1шт.

See Figure 08-13, 08-14

1шт.

2

307623A1

TUBE

1шт.

3

307614A1

TUBE

1шт.

4

A12306

FLANGE

4шт.

5

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

6

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

7

L129834

SUPPORT

2шт.

Mounting

1шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

L129257

U-BOLT

6шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

12

231-1446

NUT,3/8" - 16, Gr 5

12шт.

13

L129253

HOSE ASSY.

1350 mm (53-1/4 in)

2шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

15

L129843

TUBE,31.75 mm OD x 770, 441 mm L

2шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

21

201-901

CAP,1 7/16"-12 ORFS

1-7/16 fc sl

2шт.

22

492-11038

LOCK WASHER,3/8"

8шт.
