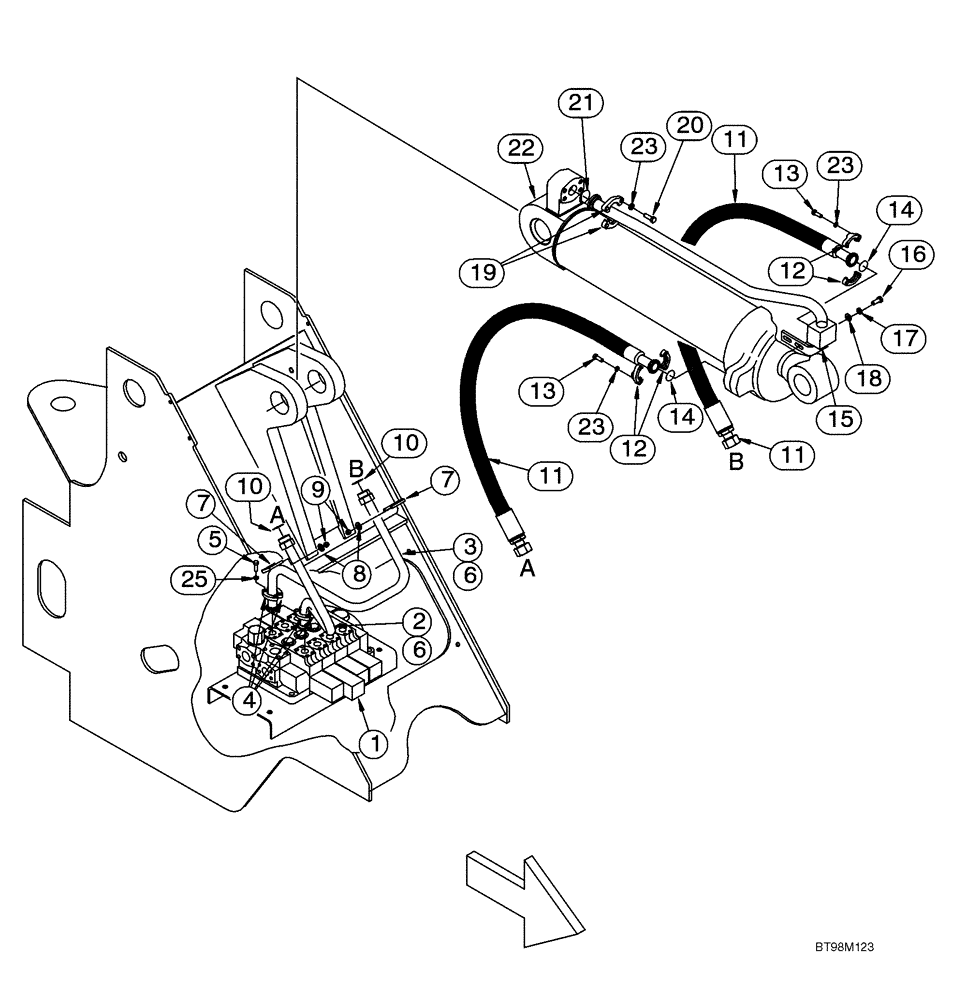

Запчасти Case 921C (08-08) - HYDRAULICS - LOADER BUCKET (Jun 15 2009 9:56AM) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy

1шт.

Control

1шт.

Loader Bucket

1шт.

See Figure 08-12 - 08-14

1шт.

2

307616A1

TUBE

1шт.

Supply

1шт.

Right Hand

1шт.

3

307619A1

TUBE,31.75 mm OD, 450, 364 mm Length

1шт.

Supply

1шт.

Left Hand

1шт.

4

A12306

FLANGE

4шт.

5

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

6

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

7

L129257

U-BOLT

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

11

L129716

HOSE ASSY.

1650 mm (65 in)

2шт.

12

A12301

CLAMP,Half

4шт.

13

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

7/16 x 1-1/4; 8

8шт.

14

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

15

L128519

TUBE,38.09 mm OD

1шт.

Bucket Cylinder

1шт.

16

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

19

A14157

FLANGE

2шт.

20

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

21

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

22

1346171C3

CYLINDER ASSY.

203 ID x 745 strk

1шт.

Loader Bucket

1шт.

See Figure 08-20

1шт.

23

492-11044

LOCK WASHER,7/16"

8шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

25

492-11038

LOCK WASHER,3/8"

8шт.
