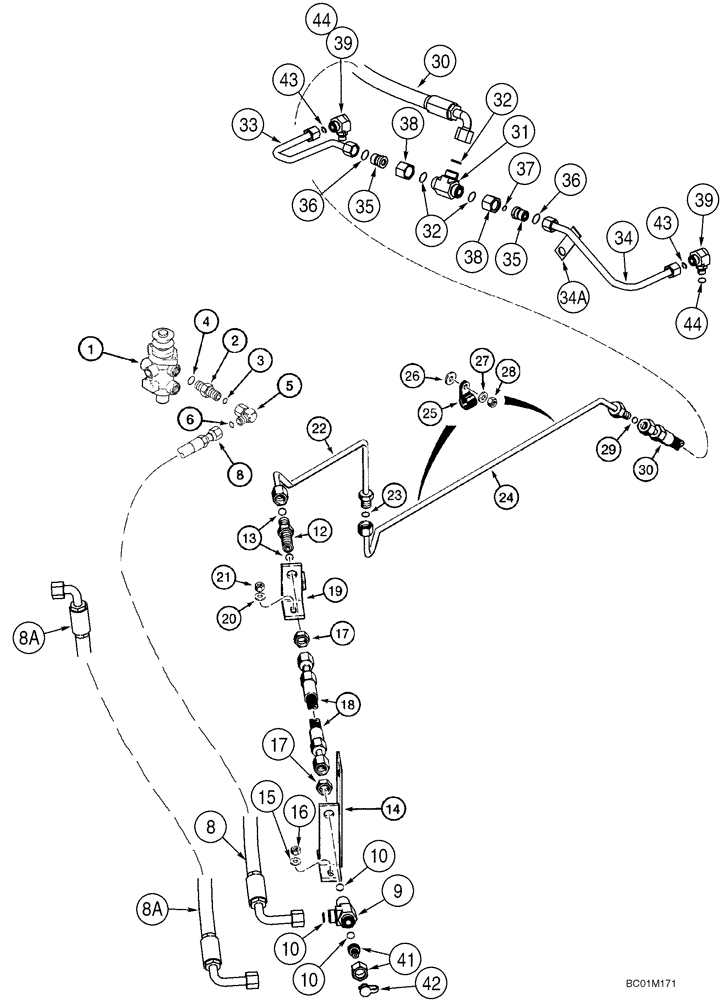

Запчасти Case 921C (07-07) - HYDRAULICS - BRAKE, MAIN (Jan 12 2010 10:23AM) (07) - BRAKES

MAIN BRAKE VALVE TO FRONT AXLE

1шт.

1

393884A2

VALVE, BRAKE

1шт.

Main Brake Valve

1шт.

See Figure 07-09

1шт.

2

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

1шт.

Incl. 3, 4

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Boss End

1шт.

5

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1 fc x sw

1шт.

Incl. 6

1шт.

Used With REF 8

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

344569A1

HOSE ASSY.

659 mm (25-15/16 in)

1шт.

If Used

1шт.

8a

404423A1

HOSE ASSY.

691 mm (27-3/16 in)

1шт.

If Used

1шт.

9

201-429

TEE,1" - 14 ORFS x 1" - 14 ORFS x 1" - 14 ORFS

1шт.

Incl. 10

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

12

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

1 fc x 1 bkhd fc

1шт.

Incl. 13

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

222927A1

SUPPORT

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

201-919

BHD LOCK NUT,1" - 14

2шт.

18

344567A1

HOSE ASSY.

452 mm (17-7/8 in)

1шт.

19

102803A1

SUPPORT

1шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

21

231-1448

NUT,1/2"-13, GB

1шт.

22

L129786

TUBE,15.87 mm OD

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

344603A1

TUBE

1шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

28

231-1446

NUT,3/8" - 16, Gr 5

2шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

30

344570A1

HOSE ASSY.

402 mm (15-13/16 in)

1шт.

31

201-415

TEE,1"-14 ORFS

1шт.

Incl. 32

1шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

33

344664A2

BRAKE LINE

1шт.

Left Hand Front

1шт.

34

344666A2

TUBE

1шт.

Right Hand Front

1шт.

Incl. 34A

1шт.

34a

NSS

NOT SOLD SEPARAT

Support

1шт.

Mount With Axle Bolt

1шт.

35

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

1 sw x 13/16 fc

2шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

203-903

TUBE NUT,1"-14 ORFS

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

2шт.

Incl. 43, 44

1шт.

41

324201A1

PLUG

1шт.

42

H434163

DUST CAP

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
