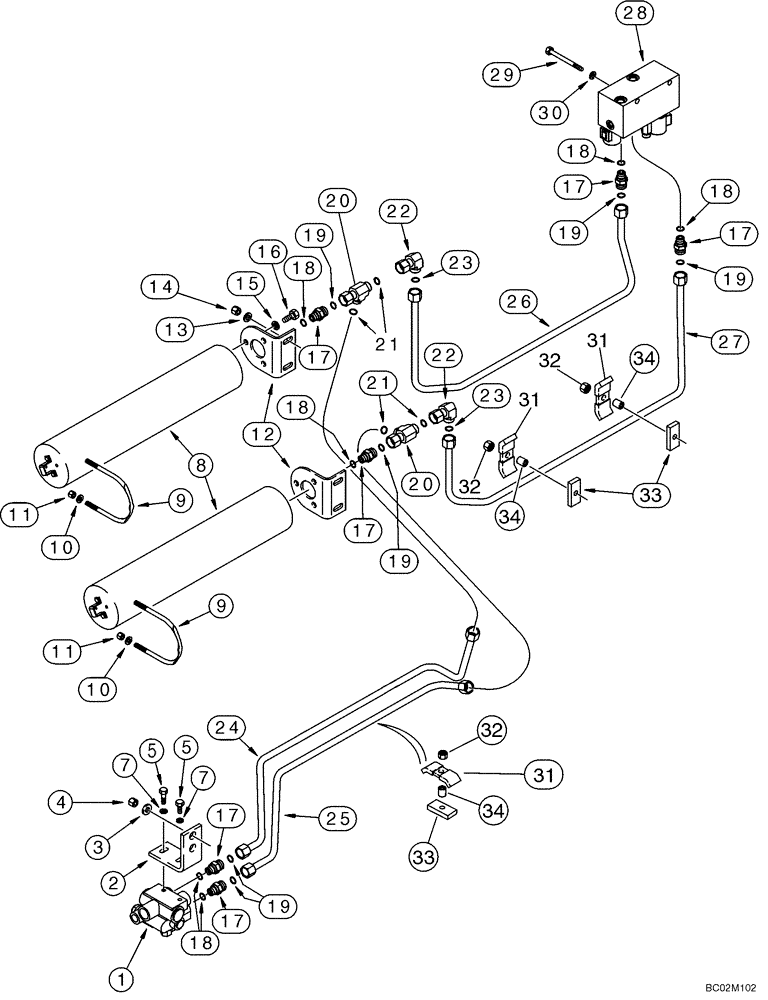

Запчасти Case 921C (07-04) - HYDRAULICS - BRAKE, MAIN (Jun 1 2010 3:07PM) (07) - BRAKES

COMBINATION VALVE AND ACCUMULATOR

1шт.

1

426168A1

VALVE

1шт.

Accumulator Charging

1шт.

2

L129987

BRACKET

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1-2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

87400229

ACCUMULATOR

2шт.

European Models

1шт.

Component Parts Not Available at Time of Printing

1шт.

8

365757A1

ACCUMULATOR

2шт.

See Figure 07-10

1шт.

North American Models

1шт.

9

L128472

U-BOLT

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

L129001

SUPPORT

2шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

16

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

17

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

6шт.

Incl. 18, 19

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Boss End

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

20

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

2шт.

Incl. 21

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1 fc x sw

2шт.

Incl. 23

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

321448A2

TUBE

Front

1шт.

25

321450A2

TUBE

Rear

1шт.

26

220480A3

TUBE

Front

1шт.

27

220482A3

TUBE

Rear

1шт.

28

407165A1

VALVE

1шт.

Combination Valve

1шт.

See Figure 08-47

1шт.

29

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

31

D40236

CLAMP

3шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

3-4шт.

33

L119350

SPACER

2-3шт.

34

D76209

SPACER

3шт.
