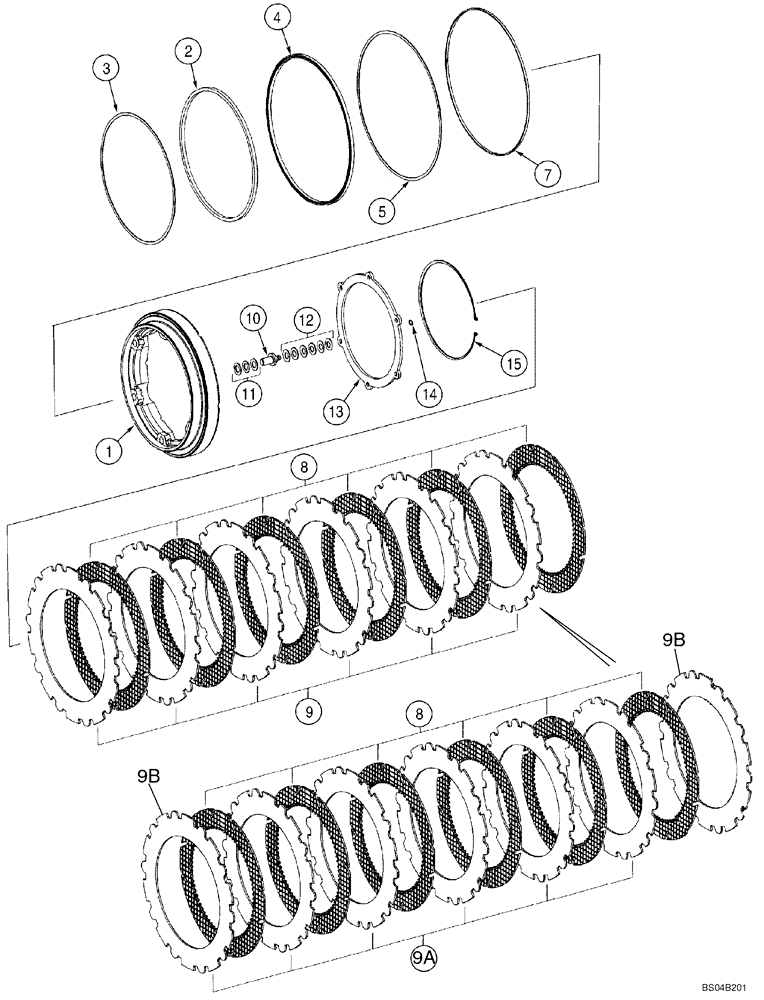

Запчасти Case 921C (07-03A) - AXLE, FRONT AND REAR - HUB, DISC BRAKES (07) - BRAKES

298445A2

FRONT AXLE

Incl. 06-18 - 06-21

1шт.

298446A2

REAR AXLE

Incl. 06-20, 06-22 - 06-24

1шт.

87313937

REAR AXLE

ZF No 4474 054 026; Same As 298446A2 Except Oil Filled

1шт.

87358599

REAR AXLE

ZF No 4474 054 048; New Brake Discs

1шт.

1

8603165

PISTON

Replaces 384384A1

2шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Replaces 384315A1

2шт.

3

8603577

RING

Replaces 384317A1

2шт.

4

8605315

SEAL

Replaces 384318A1

2шт.

5

8603579

RING

Replaces 384319A1

2шт.

7

8603580

SNAP RING

Replaces 384321A1

2шт.

87365254

REPAIR KIT

Incl. Refs. 8, 9A, 9B

2шт.

87482112

REPAIR KIT

Bronze Brake Upgrade, Rear Axle; Incl. Refs. 1 - 5, (2) 9A, (12) 8603163 Adjuster Pins, (16) 87521419 2.4 mm Separator Plates, (4) 87588632 Brake Damper Plates, and (12) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

87482115

REPAIR KIT

Bronze Brake Upgrade, Rear Axle; Incl. (2) 8603582 Brake Plate Separators (4) 87588632 Brake Plate Dampers, (12) 8603163 Adjuster Pins, (16) 87521419 2.4 mm Separator Plates, and (12) 87521418 Bronze Brake Discs; Not Illustrated

1шт.

87482117

REPAIR KIT

Bronze Brake Upgrade, Rear Axle; Incl. (6) 87588632 Brake Damper Plates, (12) 8603163 Adjuster Pins, (14) 87521419 2.4 mm Separator Plates, and (12) 878521418 Bronze Brake Discs; Not Illustrated

1шт.

8

384322A1

BRAKE DISC

DISC, BRAKE Inner

12шт.

8

8603581

BRAKE DISC

Inner; Replaces 384322A1

12шт.

8

87341835

BRAKE DISC

Replaces 8603581 For Rear Axle

12шт.

9

384323A1

BRAKE PLATE

Outer; 6 Per Side; Used In (6) Plate Brake Assy; If Used

12шт.

9a

8603582

BRAKE PLATE

5 Per Side; Used With Ref 9B In (7) Plate Brake Assy; If Used

10шт.

9b

87441328

PLATE,2mm Thk

2 Per Side; Used With Ref 9A In (7) Plate Brake Assy; If Used

4шт.

10

384428A1

PIN

12шт.

10

8603164

PIN

Brake Adjustment; Replaces 384428A1

12шт.

11

384325A1

RING

48шт.

12

384326A1

BELLEVILLE WASHER

86шт.

13

87408034

SHIM

Replaced by 8603162, 8603164, 8603165

2шт.

13

8603162

SHIM

Replaces 87408034

2шт.

14

87408035

SNAP RING

12шт.

15

384550A1

RING, SNAP

RING SNAP

2шт.

15

8603585

SNAP RING

Replaces 384550A1

2шт.

16

8603796

ROLL PIN,6mm OD x 20mm L

6 X 20; Not Illustrated

12шт.
