Запчасти Case 921C (06-25) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (Mar 11 2010 9:50AM) (06) - POWER TRAIN

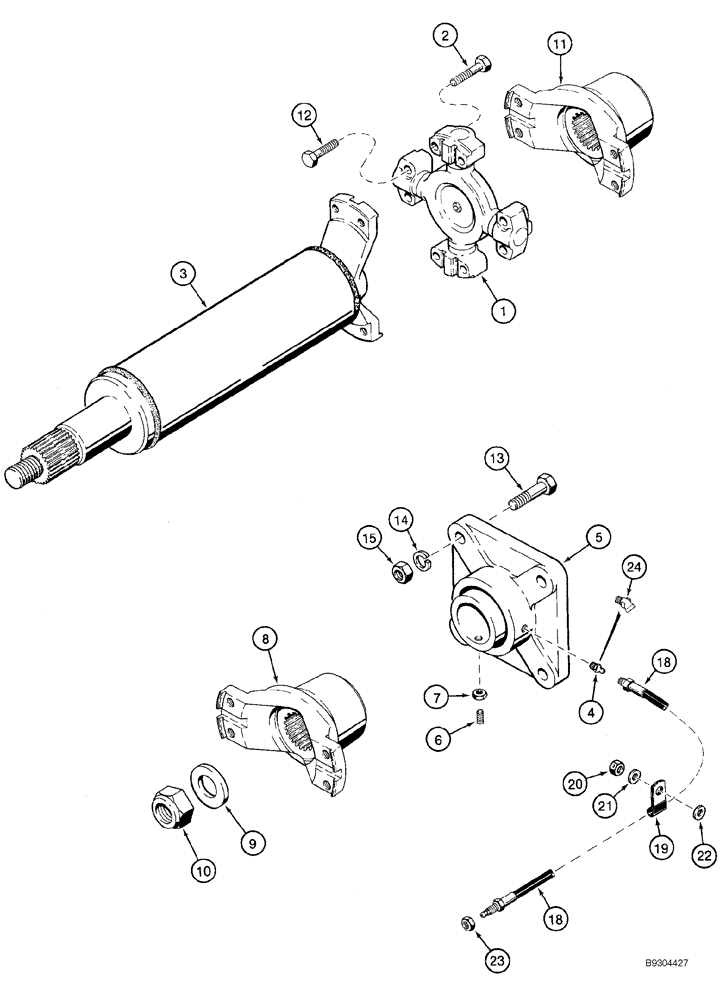

Схема запчастей Case 921C - (06-25) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (Mar 11 2010 9:50AM) (06) - POWER TRAIN
23
13
1
10
2
24
5
22
15
4
19
9
6
14
8
18
21
12
18
3
20
7
11

Артикул

Название

Примечание

Количество

311316A1

DRIVE SHAFT

1шт.

Incl. 1-10

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

1шт.

Universal Joint

1шт.

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Universal Joint

1шт.

2

S301992

SCREW

4шт.

3

388471A1

DRIVE SHAFT

1шт.

Axle End

1шт.

S301991

BEARING CARRIER,3"

1шт.

Incl. 4-7

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

84-64412

SET SCREW,Hex Soc, 7/16"-20 x 3/4"

7/16 NF x 3/4

1шт.

7

25-157

JAM NUT,Jam, 7/16"-20, G5

7/16 NF

1шт.

8

S301997

FORK

1шт.

Drive Shaft to Center Bearing

1шт.

9

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

10

131-487

LOCK NUT,1 1/4"-18

1-1/4

1шт.

11

384504A1

FLANGE

Flange

1шт.

Drive Shaft to Front Axle

1шт.

See Figure 06-19, REF 13

1шт.

12

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2 NF x 2; 8

8шт.

13

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

4шт.

14

492-11062

BEARING WASHER,5/8"

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

18

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in)

1шт.

Lubrication

1шт.

19

49832

CLAMP

5/16 ID

1шт.

20

231-1446

NUT,3/8" - 16, Gr 5

1шт.

21

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

22

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

23

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

24

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

Выбрано товаров: 34
