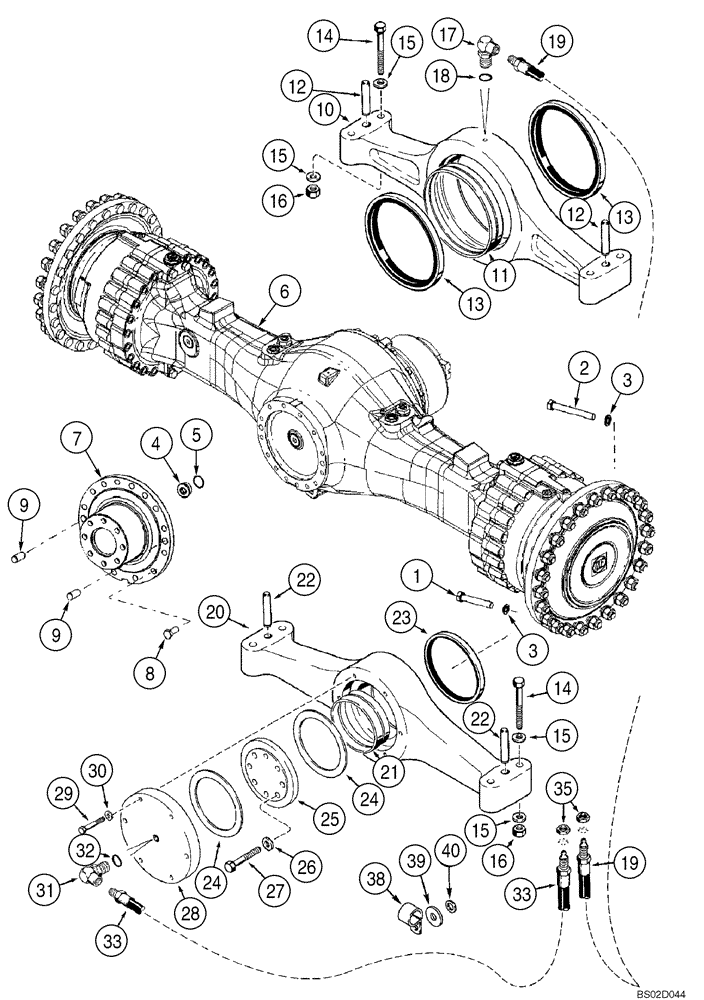

Запчасти Case 921C (06-22) - AXLE, REAR - MOUNTING (06) - POWER TRAIN

INCLUDES TRUNNIONS AND LUBRICATION LINES

1шт.

298446A2

REAR AXLE

ZF No 4474 054 026

1шт.

Incl. 1 - 9

1шт.

Also Incl. Figure 06-20, 06-22 - 06-24, 07-01

1шт.

87313937

REAR AXLE

ZF No 4474 054 026; Same As 298446A2 Except Oil Filled

1шт.

87358599

REAR AXLE

ZF No 4474 054 048; New Brake Discs

1шт.

8603201

BREATHER

Not Illustrated

1шт.

1

934957R1

BOLT

M18 x 105

44шт.

2

384403A1

BOLT

M18 x 140

4шт.

3

A48928

WASHER

48шт.

4

384280A1

PLUG

1шт.

5

81284C1

O-RING,2.2mm Thk x 33mm ID

1шт.

6

384558A1

AXLE HOUSING

1шт.

7

384561A1

COVER

1шт.

8

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Hex, M16 x 40, 10.9, Full Thd

14шт.

9

384562A1

PIN

M6 x 40

2шт.

10

310936A2

TRUNNION

1шт.

Axle Mounting

1шт.

Front

1шт.

Incl. 11, 12

1шт.

11

313960A2

BUSHING,290.88mm ID x 303.34mm OD x 50mm L

1шт.

12

37-11236

DOWEL,3/4" x 2 1/4"

2шт.

13

314468A1

OIL SEAL

2шт.

14

326-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 8

8шт.

15

S92341

WASHER

16шт.

16

329-1014

NUT,7/8"-9, G8

8шт.

17

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

1шт.

Incl. 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

310609A1

HOSE ASSY.

1642 mm (64-5/8 in)

1шт.

Lubrication

1шт.

20

310934A1

TRUNNION

1шт.

Axle Mounting

1шт.

Rear

1шт.

Incl. 21, 22

1шт.

21

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

1шт.

22

37-11236

DOWEL,3/4" x 2 1/4"

3/4 x 2-1/4

2шт.

23

L128291

SEAL

1шт.

24

L128209

WASHER,172.2mm ID x 216mm OD x 5mm Thk

2шт.

25

L128277

SPACER

1шт.

26

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

27

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

8шт.

28

L128278

COVER

1шт.

29

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

6шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

31

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

1шт.

Incl. 32

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

33

310610A1

HOSE ASSY.

2413 mm (95 in)

1шт.

Lubrication

1шт.

Rear Trunnion

1шт.

35

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

36

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

48шт.

37

429-1714

NUT,7/8"-14, G8, Hvy

48шт.

38

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

6шт.

39

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

40

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.
