Запчасти Case 921C (06-05) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

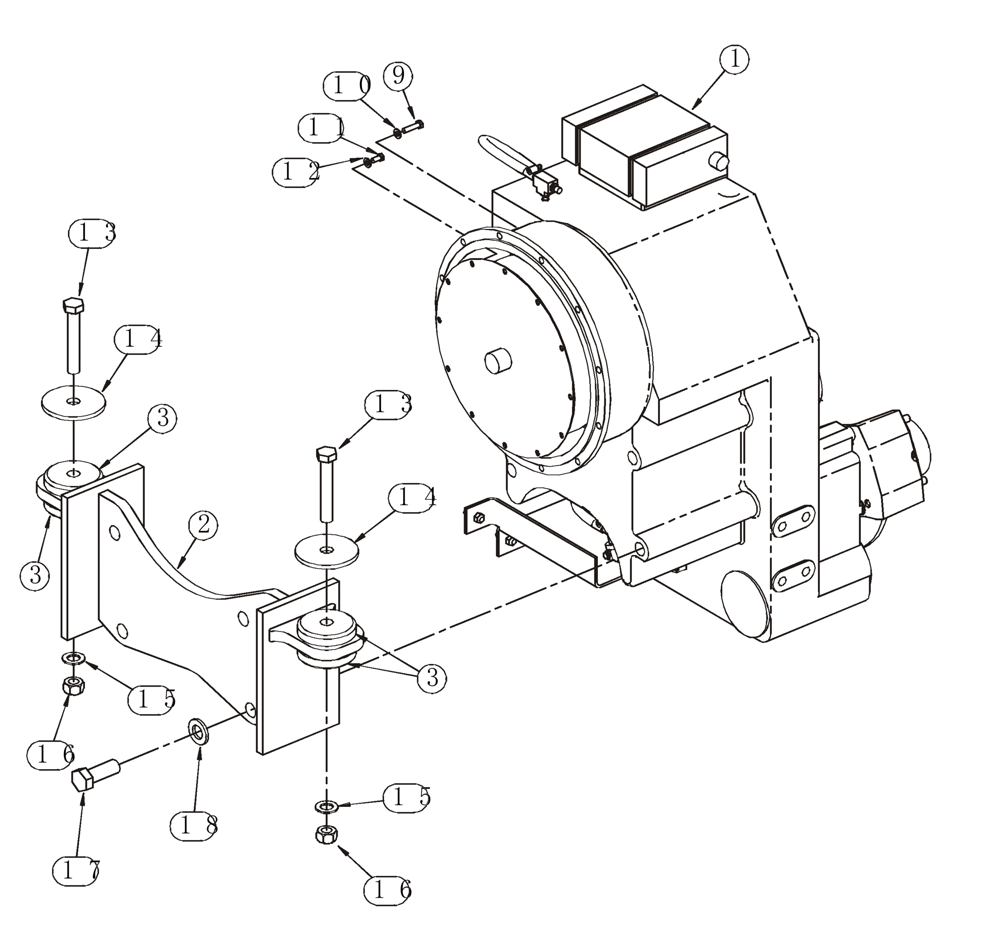

Схема запчастей Case 921C - (06-05) - MOUNTING - TRANSMISSION (06) - POWER TRAIN
10
13
15
14
12
15
16
11
16
13
14
3
3
1
3
17
2
18
9

Артикул

Название

Примечание

Количество

1

196175A1

TRANSMISSION

See Figures 06-06 - 06-20, 07-01, No Longer Available, Order 380529A1

1шт.

1

380529A1

TRANSMISSION

See Figures 06-20A - 06-20Q, 07-01A, Replaces 196175A1

1шт.

1

380529A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, Prior to PIN JEE0155000, Model Number 4WG260, Stock Number 4646 054 010

1шт.

1

380529A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

2

228838A1

GRILLE ASSY

Transmission Mounting

1шт.

3

114359A1

MOUNT

Support, Transmission, Two Piece

2шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

12шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

13

326-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

2шт.

14

L129147

WASHER

Special, Transmission Mounting

2шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Hardened

2шт.

16

429-1016

NUT,1"-8, G8

2шт.

17

828-30080

BOLT,Hex, M30 x 3.5 x 80mm, Class 10.9

M30 x 80; 10.9

4шт.

18

396-31119

WASHER,1 1/4" x 2 1/4" x 1/4", HDN

1-1/4 x 2-1/4 x 1/4, Hardened

4шт.

Выбрано товаров: 16
