Запчасти Case 921C (06-03) - HYDRAULICS - FILTER, TRANSMISSION (06) - POWER TRAIN

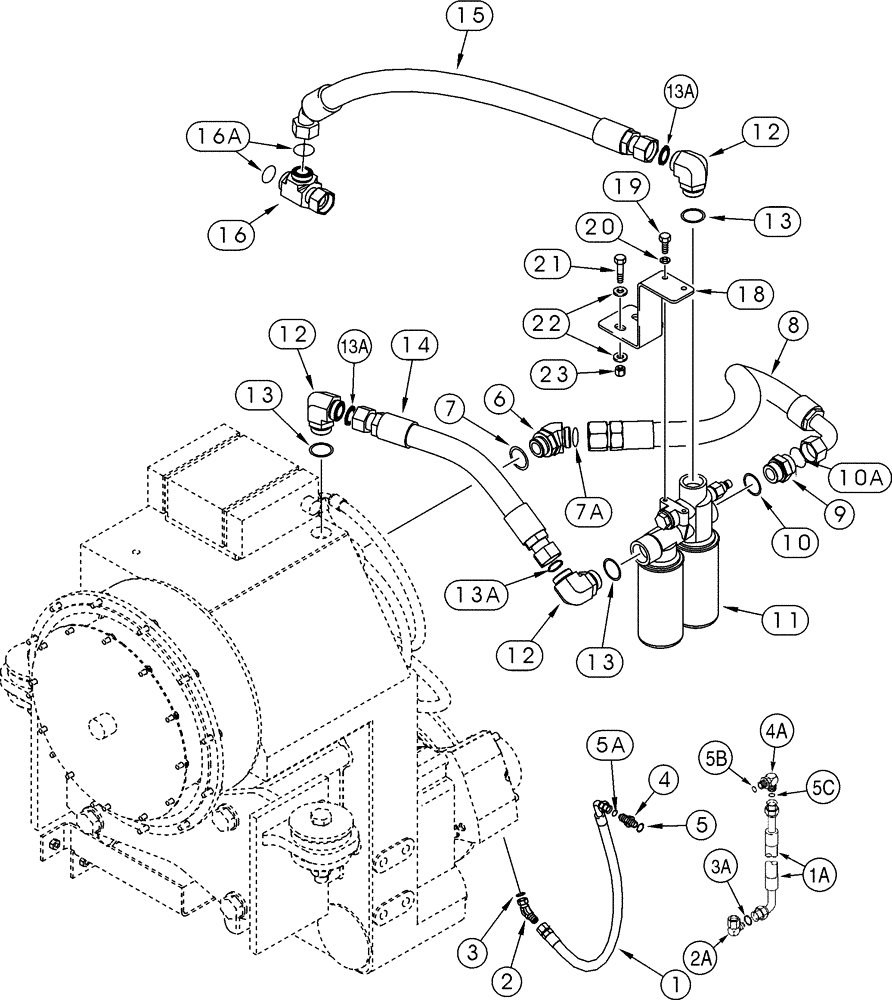

Схема запчастей Case 921C - (06-03) - HYDRAULICS - FILTER, TRANSMISSION (06) - POWER TRAIN
13
12
5a
19
4
20
5
13a
1a
16a
10
9
12
3
4a
22
6
14
16
13a
1
18
12
13a
2a
13
13
11
5b
15
7
23
7a
3a
21
5c
8
2
10a

Артикул

Название

Примечание

Количество

1

300941A1

HOSE ASSY.

Parking Brake, No Longer Used, Order 347376A1

1шт.

1a

347376A1

HOSE ASSY.

Parking Brake, Replaces 300941A1

1шт.

2

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

Incl. 3, Used with Ref 1

1шт.

2a

201-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

9/16 fc x sw, Incl. 3A, Used With REF 1A

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 5, 5A, Used with Ref 1

1шт.

4a

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 5B, 5C, Used with Ref. 1A

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

5c

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

6

700-354

ELBOW,45 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. 7, 7A

1шт.

7

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

(1-1/2 ID x 7/64), Boss End

1шт.

7a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

8

311329A1

HOSE ASSY.,31.75mm ID x 638mm L, SAE 100R1

To Filter

1шт.

9

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. 10, 10A

1шт.

10

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

(1-1/2 ID x 7/64), Boss End

1шт.

10a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

11

REF

INSTRUCTION

Filter Assy, See Figure 06-06, REF 19, 20, Or Figure 06-20A, REF 19, 20

1шт.

12

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl. 13, 13A

3шт.

13

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

(1-1/2 ID x 7/64), Boss End

3шт.

13a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

3шт.

14

311330A1

HOSE ASSY.

From Transmission Filter

1шт.

15

311331A1

HOSE ASSY.,31.75mm ID x 1014mm L, SAE 100R1

Transmission Filter Bypass

1шт.

16

201-448

TEE,1 11/16"-12 ORFS x 1 11/16"-12 Sw Run

Attaches To Cooler To Transmission Line, See Figures 06-01, REF 26; 06-02, REF 14, Incl. 16A

1шт.

16a

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

18

311537A1

SUPPORT

Filter Head Mount

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

Replaces 627-12040

2шт.

22

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

Выбрано товаров: 33
