Запчасти Case 921C (06-02) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN

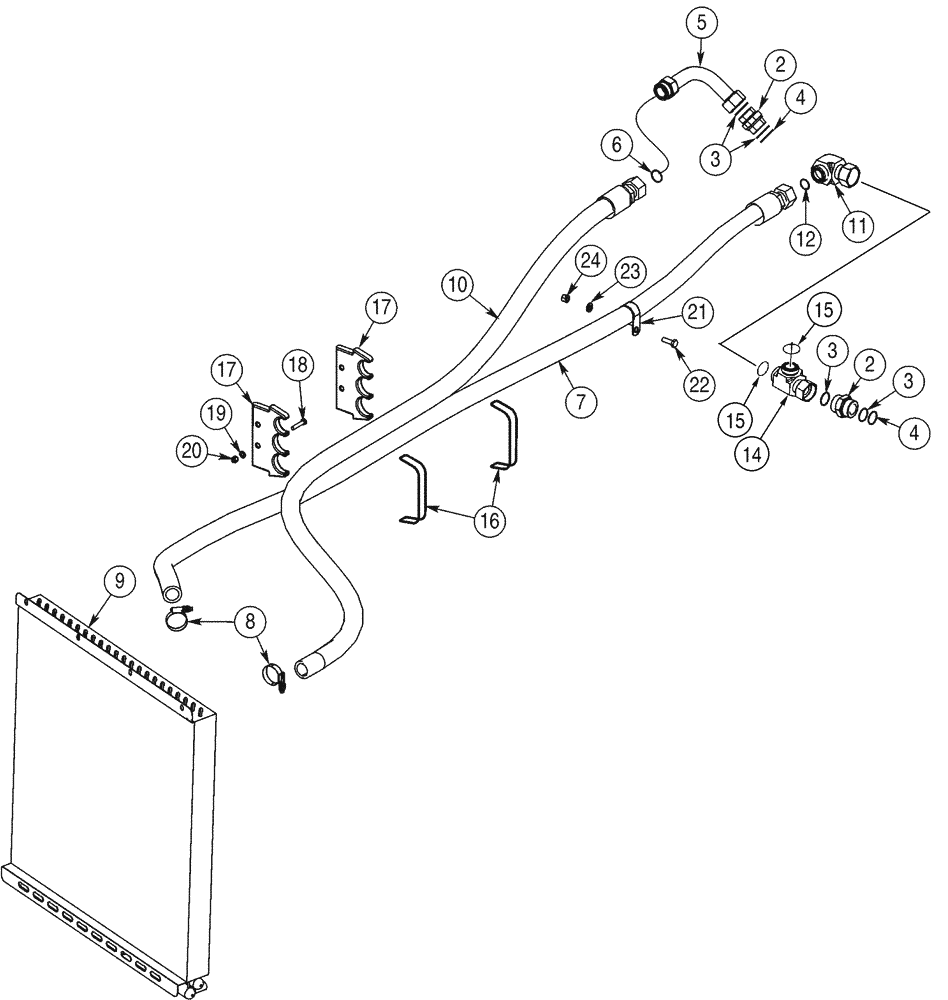

Схема запчастей Case 921C - (06-02) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN
2
12
5
4
7
19
24
23
18
22
11
14
3
3
15
8
9
16
3
17
10
17
21
2
6
15
20
4

Артикул

Название

Примечание

Количество

All Models JEE0126216-

1шт.

1

380529A1

TRANSMISSION

See Figures 06-20A - 06-20Q & 07-01A

1шт.

1

380529A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, Prior to PIN JEE0155000, Model Number 4WG260, Stock Number 4646 054 010

1шт.

1

380529A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

2

L128604

ADAPTER

Straight, Special, Incl. 3, 4

2шт.

3

S302119

O-RING,37.7mm ID x 3.5mm Width

2шт.

4

S302118

WASHER

1шт.

5

433238A1

TUBE

Transmission Return

1шт.

6

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

7

433253A1

HOSE ASSY.

2200 mm (86-5/8 in), Transmission To Cooler

1шт.

8

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

9

407068A2

OIL COOLER

Transmission And Hydraulic Oil, For Mounting, See Figure 08-07

1шт.

10

433255A1

HOSE ASSY.

2500 mm (98-7/16 in), Cooler To Transmission

1шт.

11

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

1-11/16 fc x sw, Incl. 12

1шт.

12

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

14

201-448

TEE,1 11/16"-12 ORFS x 1 11/16"-12 Sw Run

Incl. 15, See Figure 06-03, REF 16

1шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

16

451491A1

RETAINER

2шт.

17

451490A1

PLATE

2шт.

18

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 26
