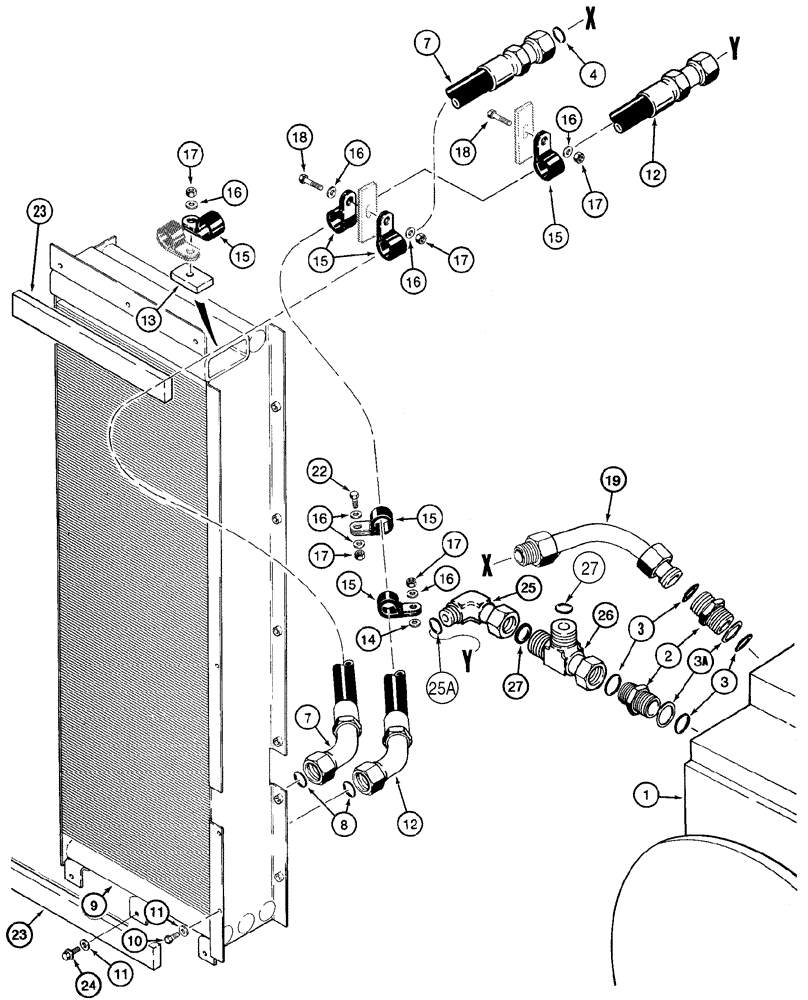

Запчасти Case 921C (06-01) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN

All Models -JEE0126215

1шт.

1

196175A1

TRANSMISSION

See Figures 06-06 - 06-20 & 07-1, No Longer Available, Order 380529A1

1шт.

1

380529A1

TRANSMISSION

See Figures 06-20A - 06-20Q & 07-1A, Replaces 196175A1

1шт.

1

380529A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, Prior to PIN JEE0155000, Model Number 4WG260, Stock Number 4646 054 010

1шт.

1

380529A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

2

L128604

ADAPTER

Straight, Special, Incl. 3, 3A

2шт.

3

S302119

O-RING,37.7mm ID x 3.5mm Width

2шт.

3a

S302118

WASHER

1шт.

7

L129092

HOSE ASSY.

2133 mm (84 in), Transmission To Cooler

1шт.

9

232069A1

OIL COOLER

Transmission And Hydraulic Oil

1шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, Hardened

9шт.

12

329579A1

HOSE ASSY.

2714 mm (106-7/8in), Cooler To Transmission

1шт.

13

L128859

SPACER

No Longer Available, Order 1978431C1

1шт.

13

1978431C1

CLAMP

Replaces L128859

1шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm, Hardened

1шт.

15

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

6шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

18

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

19

L128806

TUBE,31.75 mm OD x 173, 115 mm L

Transmission Return

1шт.

23

226085A1

SEAL

Oil Cooler

2шт.

24

253188A1

BOLT

Ground

1шт.

25

201-383

ELBOW,90 Degree, 1 11/16"-12 Fem Sw x 1 7/16"-12 Male ORFS

Incl.25A

1шт.

26

201-448

TEE,1 11/16"-12 ORFS x 1 11/16"-12 Sw Run

Incl. 27, See Figure 06-03, REF 16

1шт.

27

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

25a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
