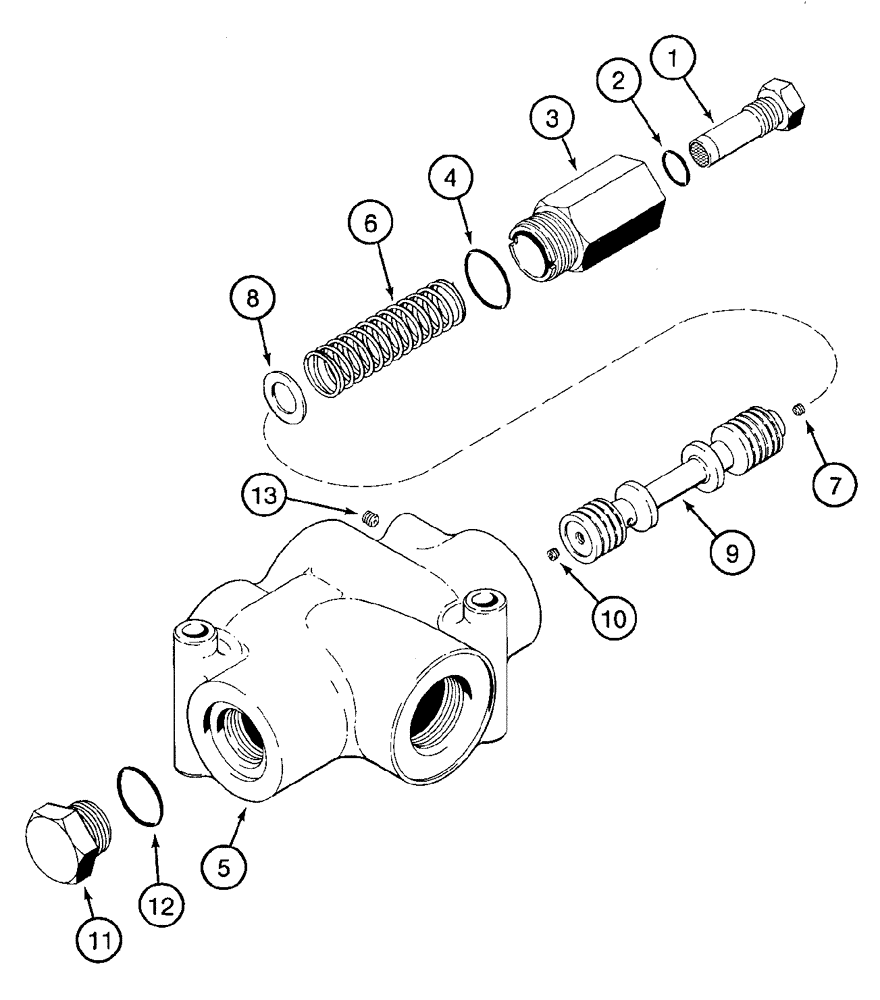

Запчасти Case 921C (05-08) - VALVE ASSY FLOW CONTROL (05) - STEERING

L128074

VALVE

Flow Control, Incl. 1 - 13

1шт.

50-3035T91

CARTRIDGE

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Cartridge, Component Parts Not Serviced Separately

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

S302016

PLUG

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

S302012

SPRING

1шт.

7

S300791

SCREW

1шт.

8

S302014

WASHER

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

S302015

SCREW

1шт.

11

218-5159

PLUG,1-3/16" - 12 ORB

Incl. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

S302019

PORT

1шт.
