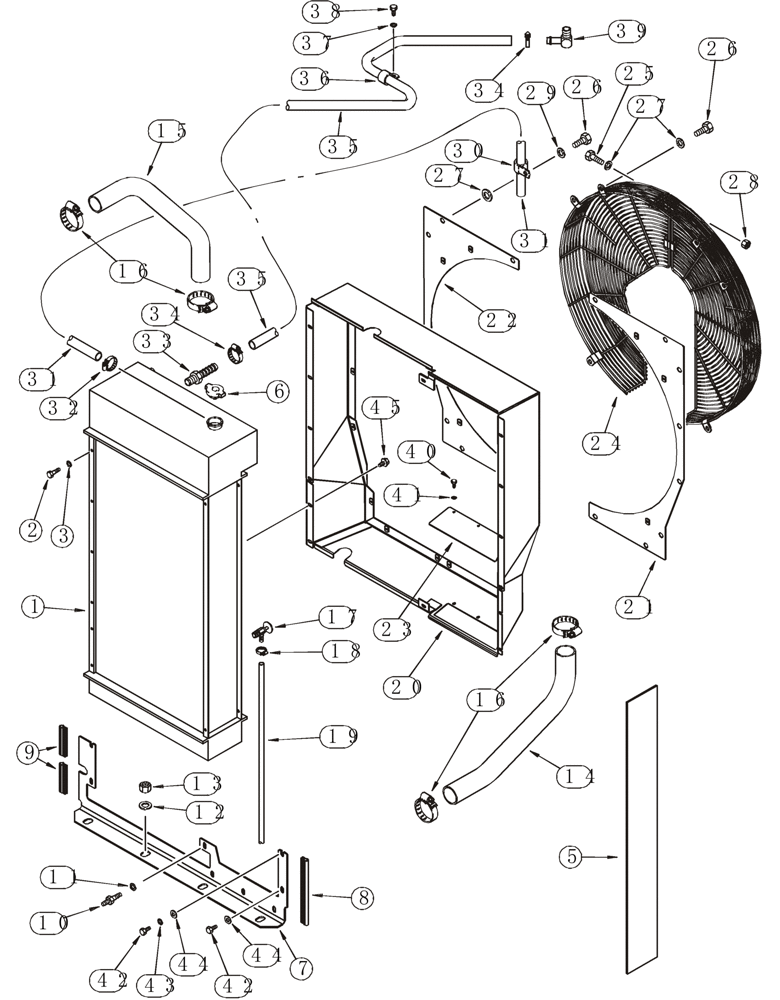

Запчасти Case 921C (02-01) - RADIATOR MOUNTING - FAN SHROUD (02) - ENGINE

North American Models -JEE0126215

1шт.

1

232030A1

RADIATOR

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Replaces 627-10030

5шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

5шт.

5

L128996

SEAL

1шт.

6

A170241

RADIATOR CAP

15 psi

1шт.

7

223272A1

SUPPORT

1шт.

8

L128940

SEAL

Right Hand Side

1шт.

9

L129203

SEAL

Left Hand Side

2шт.

10

253188A1

BOLT

Ground

1шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

12

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8

4шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

14

L129723

RADIATOR HOSE,62.90 mm ID x 588.00 mm, SAE 20R4 Class C or D1

Lower

1шт.

15

L129722

RADIATOR HOSE,56.60 mm ID x 397.00 mm, SAE 20R4

Upper

1шт.

16

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

17

A27862

COCK, DRAIN

1шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

19

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

Cut From P/N A21561X

1шт.

20

254856A1

DEFLECTOR

1шт.

21

254857A1

SHEET

Right Hand

1шт.

22

254858A1

SHEET

Left Hand

1шт.

23

L129748

LARGE PLATE

PLATE, LARGE Access

1шт.

24

222934A1

PROTECTOR

Fan

1шт.

26

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

22шт.

27

496-41034

WASHER,.344" x 1" x .098", HDN

24шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

29

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

3шт.

30

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

31

L128997

HOSE,7.9 mm ID x 2400.00 mm, SAE 30R6

Coolant Overflow

1шт.

32

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

33

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

1/4 barb x 1/4 PT

1шт.

34

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

35

D140023

HOSE

915 mm (36 in), Cut From A21561X, Serial Range: Radiator-Aftercooler

1шт.

36

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

37

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

39

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

41

496-41034

WASHER,.344" x 1" x .098", HDN

3шт.

42

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Replaces 627-10030

2шт.

43

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

44

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

45

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

14шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
