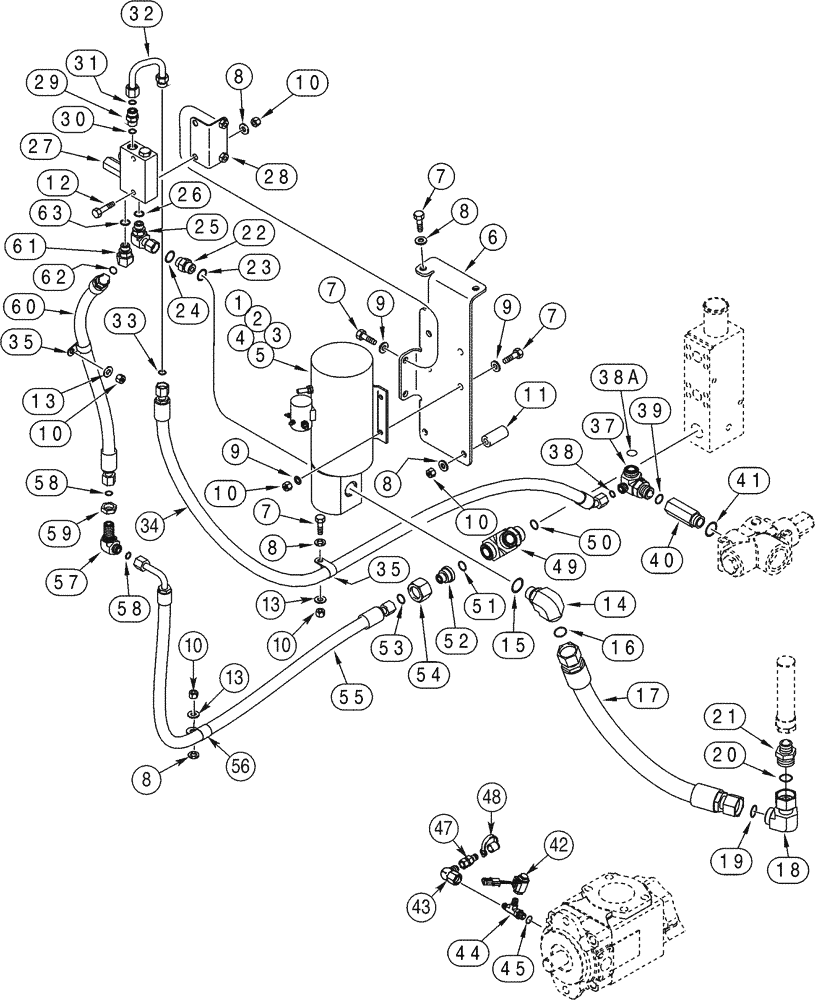

Запчасти Case 921C (05-07) - HYDRAULICS STEERING, AUXILIARY (05) - STEERING

Models With 413158A1 Solenoid Valve (REF 42)

1шт.

197540A1

PUMP, HYDRAULIC

Motor, Auxiliary Steering, Incl. 1 - 5

1шт.

1

258042A1

MOTOR, ELECTRIC

Drive

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

3

258043A1

SOLENOID SWITCH

24V

1шт.

4

258044A1

GASKET

1шт.

5

258045A1

SEAL KIT

Seal, Component Parts Not Serviced Separately, Includes (1) Retaining Ring, (1) Shaft Seal, (2) O-Rings, (2) E-Seals and (2) Backup Rings, Not Illustrated

1шт.

5a

S64612

BOOT

Not Illustrated

2шт.

6

324557A1

LARGE PLATE

PLATE, LARGE

1шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

11

324441A1

SPACER,12.7mm ID x 25.4mm OD x 54mm L

2шт.

14

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

1-7/16 fc x 1-1/16, Incl. 15, 16

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

17

324192A1

HOSE ASSY.

584 mm (23 in)

1шт.

18

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1-7/16 fc x sw, Incl. 19

1шт.

21

127811A1

FITTING

Incl. 20

1шт.

22

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 23, 24

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

25

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

13/16 sw x 3/4 Or, Incl. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

311652A1

VALVE

Component Parts Not Serviced Separately, No Longer Available, Order 311652A2

1шт.

27

311652A2

VALVE

Component Parts Not Serviced Separately, Replaces 311652A1

1шт.

28

324558A1

LARGE PLATE

PLATE, LARGE

1шт.

29

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 30, 31

1шт.

12

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

32

326366A1

TUBE,12.7 mm OD, 70, 70 mm Length

Pressure

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

324478A1

HOSE ASSY.

1562 mm (61-1/2 in)

1шт.

35

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

37

326248A1

TEE,13/16" - 16 ORFS x 1-1/16" - 12 ORB x 1-3/16" - 12 ORFS

Incl. 38, 38A, 39

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

325814A1

VALVE

Incl. 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

42

413158A1

VALVE

See Figure 04-21

1шт.

43

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

44

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 45

1шт.

47

101792A1

COUPLING

1шт.

48

H434163

DUST CAP

1шт.

49

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

Incl. 50, 51

1шт.

50

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

52

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

1-716 sw x 13/16 fc, Incl. 53

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

203-905

TUBE NUT,1 7/16"-12 ORFS

1 in

1шт.

55

324531A1

HOSE ASSY.

1158 mm (45-5/8 in)

1шт.

56

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

57

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

13/16 fc x 13/16 blhd fc, Incl. 58

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

59

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

60

324284A1

HOSE ASSY.

677 mm (26-11/16 in)

1шт.

61

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 62, 63

1шт.

62

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

63

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

51

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
