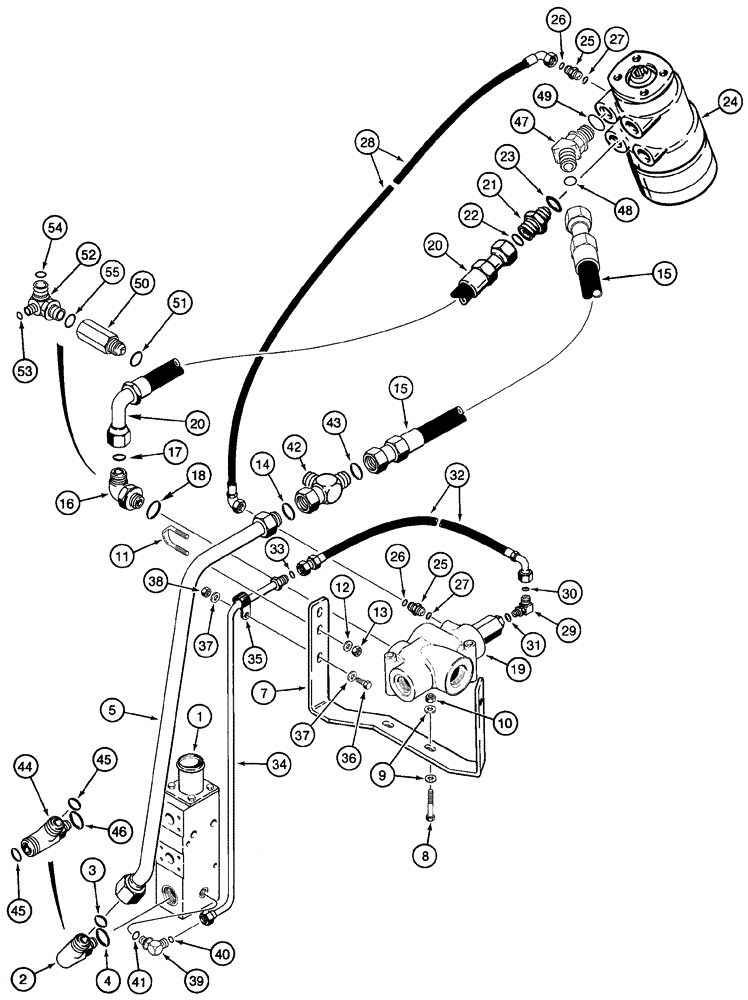

Запчасти Case 921C (05-04) - HYDRAULICS STEERING (05) - STEERING
№
Артикул
Название
Примечание
Количество
Cooler Bypass Valve to Steering Control Valve
1шт.
1
L127968
VALVE BODY
Cooler Bypass Valve, See Figure 08-02, For Mounting, See Figure 08-03
1шт.
2
201-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB
1-7/16 fc x 1-5/16 Or, Incl. 3, 4, Standard Steering, If Used
1шт.
5
L128309
TUBE,25.4 mm OD
1шт.
7
226907A2
SUPPORT
1шт.
8
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
1шт.
9
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
2шт.
10
829-1412
NUT,M12, Cl 10.9
1шт.
11
253105A1
U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm
BOLT "U"
1шт.
12
896-11008
WASHER,9mm ID x 17mm OD x 2mm Thk
9 x 17 x 2 mm
2шт.
13
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
14
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
15
231535A1
HOSE ASSY.
625 mm (24-5/8 in)
1шт.
16
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
1-3/16 fc x 1-1/16 Or, Incl. 17, 18, Standard Steering, If Used
1шт.
17
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
18
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
19
L128074
VALVE
Flow Control, See Figure 05-08
1шт.
20
231534A1
HOSE ASSY.
618 mm (24-3/8 in)
1шт.
21
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Includes 22, 23
1шт.
22
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
23
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
24
279428A2
VALVE
Steering, See Figure 05-02, Replaces 279428A1
1шт.
25
201-100
HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
9/16 fc x 7/16 Or, Incl. 26, 27
2шт.
26
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End
1шт.
27
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Boss end
1шт.
28
231533A1
HOSE ASSY.
654 mm (25-3/4 in), Load Sensing Port, No Longer Used, Order 231533A2
1шт.
28
231533A2
HOSE ASSY.
720 mm (28-3/8 in), Load Sensing Port, Replaces 231533A1
1шт.
29
201-303
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
9/16 fc x 7/16 Or, Incl. 30, 31
1шт.
30
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End
1шт.
31
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Boss end
1шт.
32
L128454
HOSE ASSY.
400 mm (15-3/4 in)
1шт.
33
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
34
L128363
TUBE,9.52 mm OD x 638, 166 mm L
Drain
1шт.
35
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
1шт.
37
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
9 x 21 x 2,5 mm
2шт.
38
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
39
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl. 40, 41
1шт.
40
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal End
1шт.
41
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end
1шт.
42
201-417
TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS
Incl. 43, If Used
1шт.
43
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
2шт.
44
201-407
TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS
Incl. 45, 46, Auxiliary Steering, If Used
1шт.
47
201-317
ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS
1-3/16 fc x 1-1/16 Or, Incl. 48, 49
1шт.
48
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End
1шт.
49
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss End
1шт.
50
325814A1
VALVE
Incl. 51, Auxiliary Steering, If Used
1шт.
51
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
52
326248A1
TEE,13/16" - 16 ORFS x 1-1/16" - 12 ORB x 1-3/16" - 12 ORFS
Incl. 53 - 55, Auxiliary Steering, If Used
1шт.
54
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
55
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
36
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
1шт.
3
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal End
1шт.
45
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face Seal End
2шт.
Выбрано товаров: 56
