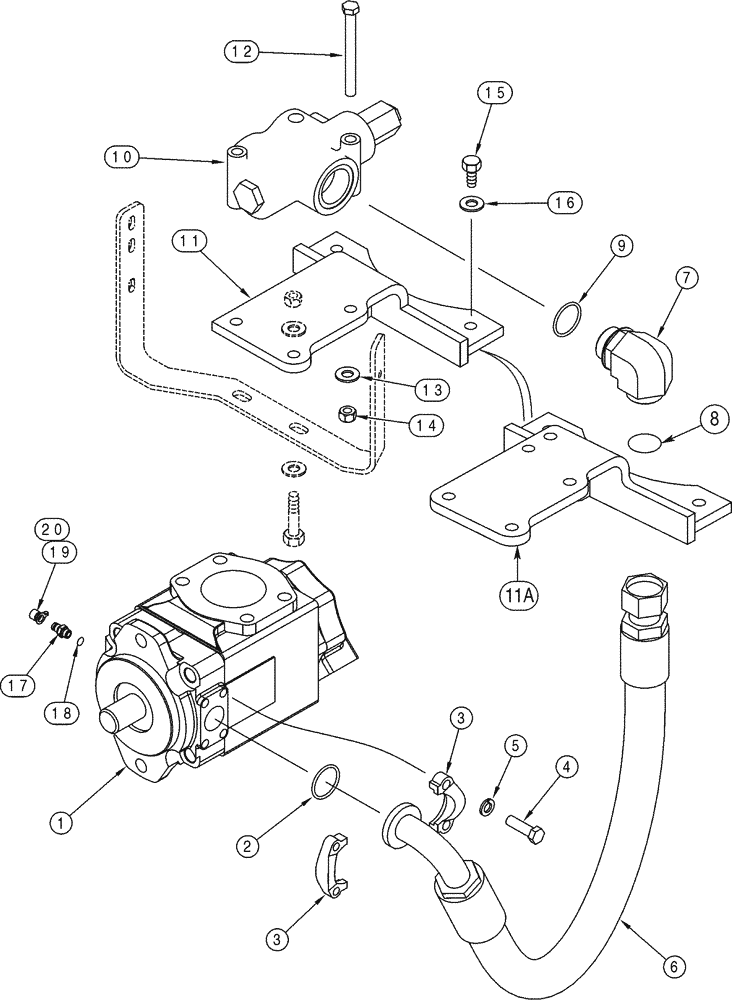

Запчасти Case 921C (05-03) - HYDRAULICS STEERING (05) - STEERING

Pump to Flow Control Valve

1шт.

1

195854A1

PUMP, HYDRAULIC,132.57 CC

See Figure 08-08

1шт.

195854A1R

REMAN-HYD PUMP

921C S/N JEE0155000 & Before

1шт.

195854A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

3

A12301

CLAMP,Half

2шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

5

892-11012

LOCK WASHER,M12

4шт.

6

221344A1

HOSE ASSY.

900 mm (35-7/16 in), Pump to Flow Control Valve

1шт.

7

201-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

Incl. 8, 9

1шт.

8

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

10

L128074

VALVE

Flow Control, See Figure 05-08

1шт.

11

L129296

SUPPORT

No Longer Used, Order 418235A1

1шт.

11a

418235A1

SUPPORT

Replaces L129296

1шт.

12

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

2шт.

13

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

2шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

15

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

S243647

COUPLING

Quick Disconnect Coupling, Includes 17 - 20, Standard Steering, If Used, For Auxiliary Steering, See Figure 05-06

1шт.

17

NSS

NOT SOLD SEPARAT

Coupling

1шт.

19

S301201

CAP

If Used

1шт.

20

H434163

DUST CAP

If Used

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
