Запчасти Case 921C (05-02) - VALVE ASSY STEERING CONTROL (05) - STEERING

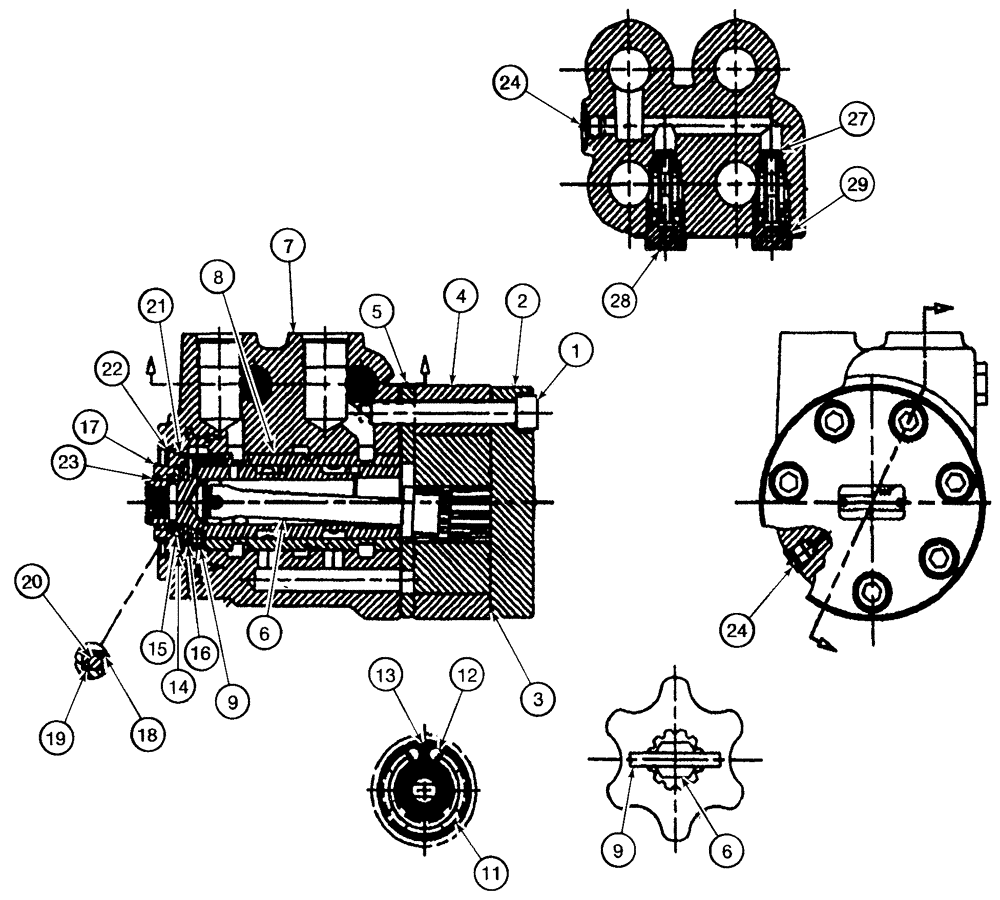

Схема запчастей Case 921C - (05-02) - VALVE ASSY STEERING CONTROL (05) - STEERING
20
1
7
9
16
24
19
14
8
9
6
18
22
3
15
24
21
4
28
2
13
11
29
12
5
27
17
6
23

Артикул

Название

Примечание

Количество

279428A1

VALVE

Steering, Incl. 1 - 29, No Longer Used, Order 279428A2

1шт.

279428A2

VALVE

Steering, Incl. 1 - 29, Replaces 279428A1

1шт.

1

313837A1

12 PT SCREW

7шт.

2

50-2710T1

CAP

1шт.

3

50-2708T1

O-RING

3шт.

4

279429A1

GEROTOR

1шт.

5

50-2707T1

WEAR PLATE

1шт.

6

50-2706T1

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

Housing

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

9

S301999

PIN

1шт.

50-3588T1

SEAL KIT

Incl. 3, 18 - 20, 23, Used With 279428A1

1шт.

399079A1

SEAL KIT

Seal, Incl. 3, 18, 19, 23, Used With 279428A2

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

211-1010

BALL,5/16" OD

5/16; 24,CRS

2шт.

13

NSS

NOT SOLD SEPARAT

Key

1шт.

14

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

15

D82804

RACE

1шт.

16

50-3606T1

RACE

1шт.

17

50-3604T1

SEAL RETAINER

1шт.

18

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

1шт.

19

N13314

RING

1шт.

20

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

21

50-2705T1

O-RING

1шт.

22

103-21237

SNAP RING,2.375", Int, #237

1шт.

23

A28211

OIL SEAL

1 in

1шт.

24

NSS

NOT SOLD SEPARAT

Plug

1шт.

27

313835A1

VALVE

2шт.

28

313836A1

PLUG

2шт.

29

313834A1

O-RING

2шт.

30

320680A1

RIVET

Not Illustrated, Used With 279428A2

2шт.

50-3587T1

PACKAGE,SERVICE

Incl. 11 - 13

1шт.

50-3588T1

SEAL KIT

Incl. 3, 18 - 20, 23, Used With 279428A1

1шт.

399079A1

SEAL KIT

Seal, Incl. 3, 18, 19, 23, Used With 279428A2

1шт.

Выбрано товаров: 34
