Запчасти Case 921C (05-01) - STEERING WHEEL COLUMN (05) - STEERING

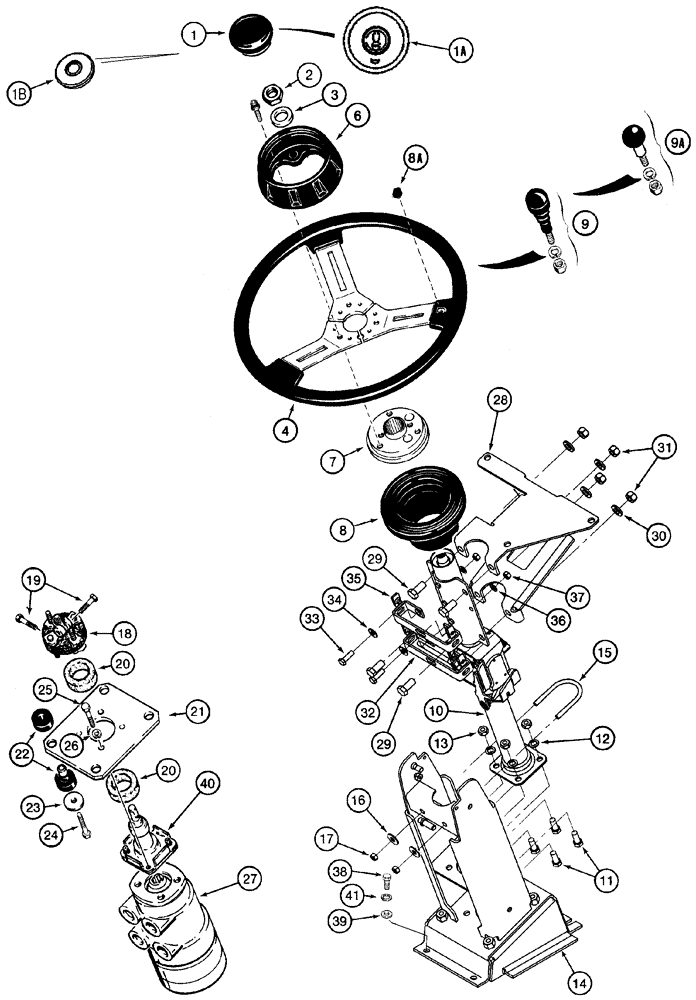

Схема запчастей Case 921C - (05-01) - STEERING WHEEL COLUMN (05) - STEERING
25
6
1b
29
34
20
10
1
32
16
13
17
8a
33
27
38
36
31
28
18
24
37
30
40
8
15
39
19
29
9a
14
4
7
21
20
9
2
1a
35
23
22
3
41
11
12

Артикул

Название

Примечание

Количество

1

195277A1

PLUG

Incl. 1A, -JEE0123272

1шт.

1a

A180055

CAP ASSY.

Case Globe and Eagle

1шт.

1b

384985A1

CAP

Incl. 1C, JEE0123273-

1шт.

1c

1342054C1

PLASTIC PLUG

Not Illustrated

1шт.

2

NSS

NOT SOLD SEPARAT

M14, Nut, See Page(s) 5-5

1шт.

3

895-11014

WASHER,M14 x 28 x 2.5

1шт.

283484A1

STEERING WHEEL

Incl. 4-8A

1шт.

4

D147465

STEERING WHEEL

Not Serviced Separately, Order 283484A1, See Below

1шт.

283484A1

STEERING WHEEL

Includes Spacer Ring, Wheel Hub, Bolts, Washers and Wheel, Not Illustrated; Replaces D148204

1шт.

5

S301434

SCREW

3шт.

6

S301399

CAP

1шт.

7

329105A1

HUB

1шт.

8

S301400

BOOT

1шт.

8a

S301435

PLUG

Remove To Use Spinner Knob

1шт.

9

L127996

KNOB

Spinner, Includes Washer and Nut, No Longer Available, Order REF 9A, 97400C1

1шт.

9a

97400C1

HANDLE

Spinner, Includes Washer and Nut

1шт.

10

226107A2

STEERING COLUMN

Assy, Tilt, Incl 2, No Longer Used, Order 226107A3

1шт.

10

226107A3

STEERING COLUMN

Assy, Tilt, Incl 2, Replaces 226107A2

1шт.

10

318942A1

REPAIR KIT

Locking, Tilt, Replaces 318936A1

1шт.

10

339490A1

REPAIR KIT

Spring

1шт.

10

339499A1

REPAIR KIT

Lever

1шт.

10

339500A1

REPAIR KIT

Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

Column, Steering, Housing, Shaft

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

251715A4

SUPPORT

Replaces 251715A2, 251715A3

1шт.

15

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

L100096

ISOLATOR

1шт.

19

CAS7807271

SCREW

3/8 x 1-1/4, Replaces 414-620

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

2шт.

21

237344A2

PLATE

Replaces 237344A1

1шт.

22

A141515

ISOLATOR

4шт.

24

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

25

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

26

892-11010

LOCK WASHER,M10

4шт.

27

279428A2

VALVE

Steering, Replaces 279428A1, See Figure 05-02

1шт.

28

251730A4

PLATE

Instrument Cluster, Replaces 251730A2, 251730A3

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

31

829-1412

NUT,M12, Cl 10.9

4шт.

32

251725A3

BRACKET

Replaces 251725A2

2шт.

35

833-40306

SPRING NUT,M6, U

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

39

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

40

S301818

CAP

Lower, Component Parts Not Serviced Separately

1шт.

41

893-11010

LOCK WASHER,Ext Tooth, M10

4шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
