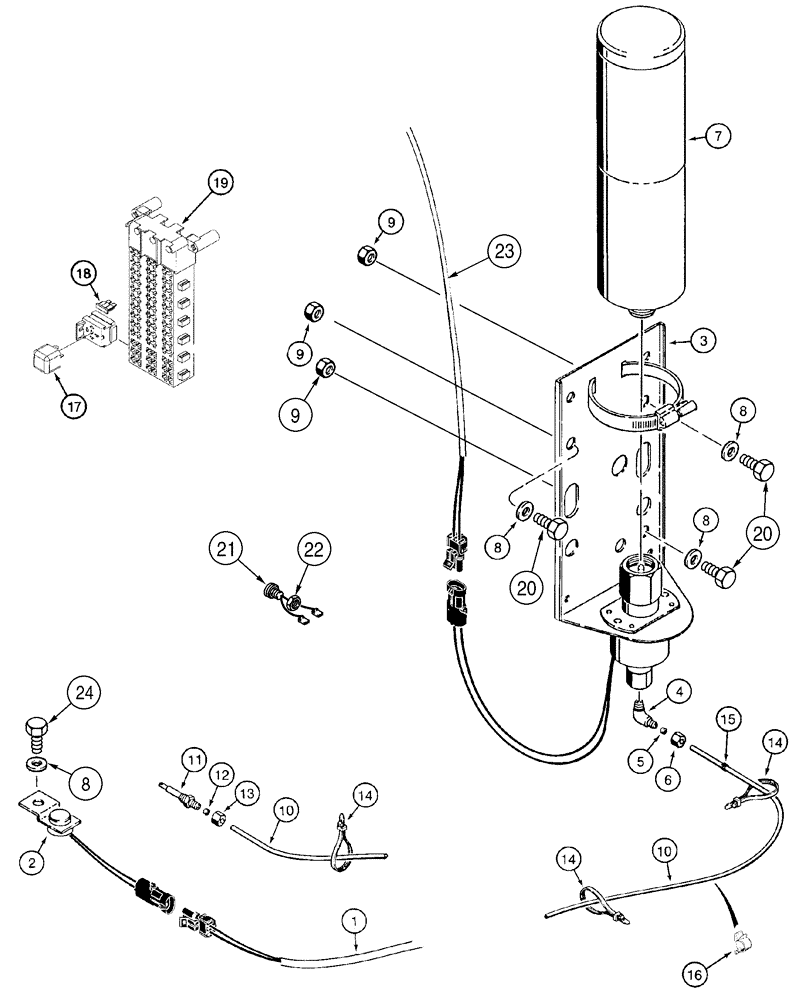

Запчасти Case 921C (04-45) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

North American Models JEE0126216-

1шт.

1

230867A4

HARNESS

Engine and Transmission

1шт.

2

L126191

THERMOSTATIC SWITCH

Circuit Breaking, Use Existing Hardware

1шт.

L126198

VALVE

Incl. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

7

A171940

CYLINDER

Starting Fluid

1шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

10

378304A1

PLASTIC-RUBBER TUBE,0.125" OD

1219 mm (48 in)

1шт.

A172900

NOZZLE CAP

Starting Fluid, Incl. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

248-2331

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

Rubber

1шт.

17

326845A1

RELAY,24V

24V

1шт.

18

A149800

FUSE,10 Amp

10 amp

1шт.

19

429188A2

HARNESS

Cab Main

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

21

A135520

SWITCH

Ether Start

1шт.

22

425-1110

NUT,5/8"-18, G5

1шт.

23

426169A2

HARNESS

Rear Chassis

1шт.

24

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.
