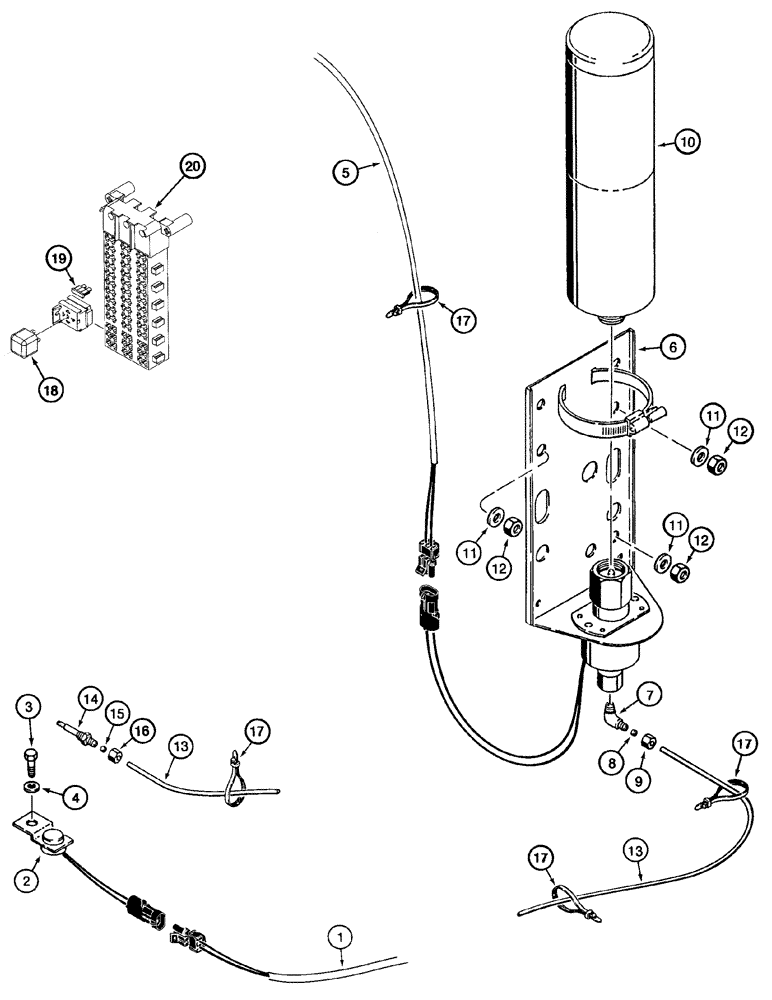

Запчасти Case 921C (04-44) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

North American Models -JEE0126215

1шт.

1

230867A4

HARNESS

Engine and Transmission, Replaces 230867A1, 230867A2, 230867A3

1шт.

2

L126191

THERMOSTATIC SWITCH

Circuit Breaking

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

5

230866A1

HARNESS

Rear Chassis

1шт.

L126198

VALVE

Incl. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

222-650

SLEEVE,1/8" Tube, Comp

1шт.

9

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

10

A171940

CYLINDER

Starting Fluid

1шт.

11

S95569

WASHER

Hardened

3шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

13

117341A1

TUBE,3.17 mm OD, 2743 mm Length

2743 mm (108 in), No Longer Available, Order L129752

1шт.

13

L129752

TUBE,3.17 mm OD x 3352 mm L

3352 mm (132 in), Replaces 117341A1

1шт.

A172900

NOZZLE CAP

Starting Fluid, Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Body

1шт.

15

222-650

SLEEVE,1/8" Tube, Comp

1шт.

16

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

18

326845A1

RELAY,24V

24V

1шт.

19

A149800

FUSE,10 Amp

10 amp

1шт.

20

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

20

429188A2

HARNESS

Cab Main, Replaces 429188A1, JEE0125746-

1шт.
