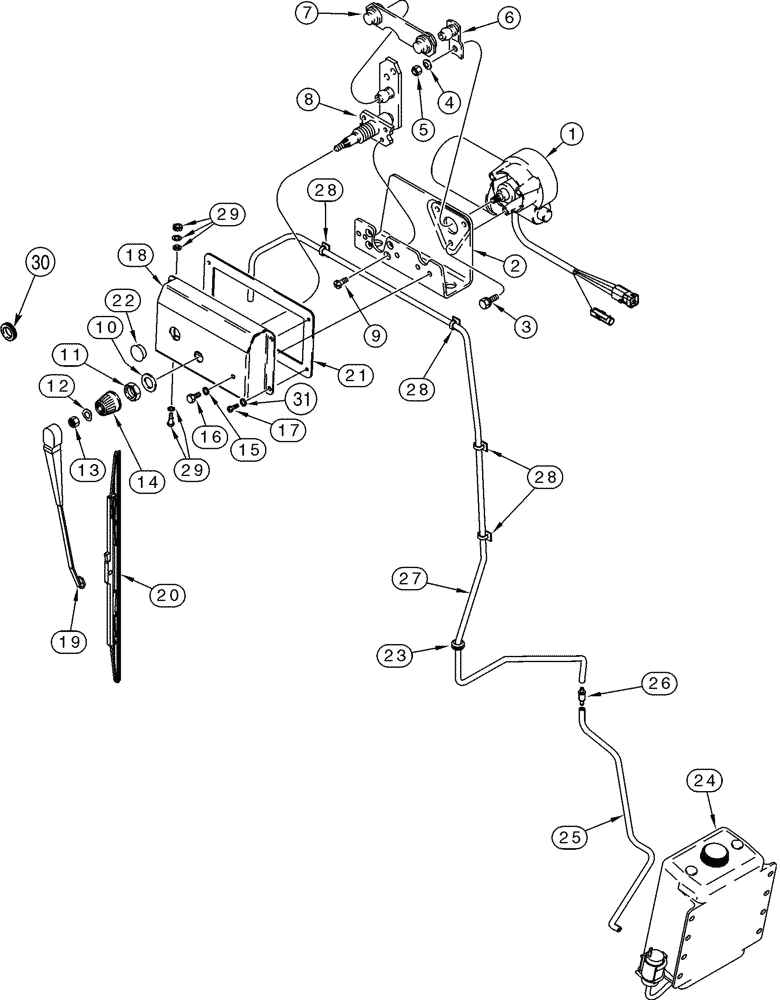

Запчасти Case 921C (04-43) - CAB- WIPER, REAR (04) - ELECTRICAL SYSTEMS

413378A1

WIPER MOTOR

MOTOR, WIPER 24 volt, Incl. 1 - 14, Replaces A187672

1шт.

1

413823A1

WIPER MOTOR

MOTOR, WIPER 24 volt, Windshield Wiper Rear

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket

1шт.

3

NSS

NOT SOLD SEPARAT

Screw, Special

3шт.

4

NSS

NOT SOLD SEPARAT

Washer, Special, Retaining

1шт.

5

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

6

NSS

NOT SOLD SEPARAT

Arm, Wiper

1шт.

7

413824A1

LINK

1шт.

8

NSS

NOT SOLD SEPARAT

Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Screw, Special

4шт.

10

L112088

WASHER

Shaft

1шт.

11

L112087

NUT

Shaft

1шт.

12

L112089

WASHER

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

L112081

CAP

1шт.

15

892-11006

LOCK WASHER,M6

1шт.

16

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

18

324869A2

COVER

Rear Wiper

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM, WIPER Windshield Wiper Rear

1шт.

20

132024A1

WIPER BLADE

1шт.

21

1345074C1

GASKET,5mm Thk

1шт.

22

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

23

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

24

371185A1

RESERVOIR, WINDSHIEL,4.75L

Windshield Washer, Front And Rear, Incl Pumps and Cap

1шт.

24

87439461

CAP

1шт.

24

48042633

PUMP,24V

2шт.

25

371846A1

HOSE

2083 mm (82 in), Reservoir To Check Valve, Cut From 4-1056T1

1шт.

26

324203A1

CHECK VALVE

1шт.

27

324469A1

HOSE

3073 mm (121 in), Windshield Washer, Rear, Cut From 1968141CX

1шт.

28

L100659

CLIP

4шт.

29

324550A1

JET

Windshield Washer, Rear

1шт.

30

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.

31

892-11006

LOCK WASHER,M6

4шт.
