(04-40) - HARNESS - CIGAR LIGHTER

Запчасти Case 921C (04-40) - HARNESS - CIGAR LIGHTER (04) - ELECTRICAL SYSTEMS

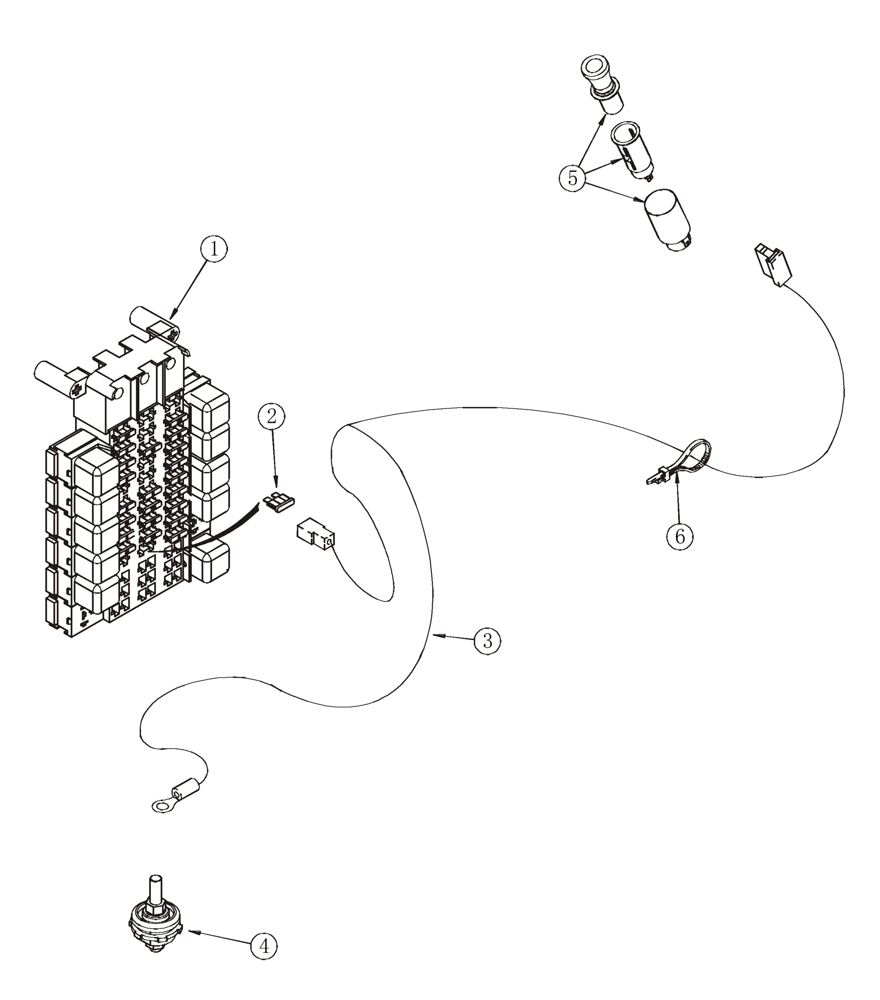

Схема запчастей Case 921C - (04-40) - HARNESS - CIGAR LIGHTER (04) - ELECTRICAL SYSTEMS
5
4
6
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

1

429188A2

HARNESS

Cab Main, Replaces 429188A1, North American Models JEE0125746-, European Models JEE0125745 - JEE0126215

1шт.

1

430210A1

HARNESS

Cab Main, European Models JEE0126216-

1шт.

2

A149801

FUSE,Lt Blue, 15 Amp

15 amp, Red

1шт.

3

313368A1

WIRE HARNESS

Cigar Lighter

1шт.

4

319055A1

JUNCTION BLOCK

1шт.

5

E134655

LIGHTER, CIGARETTE

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
