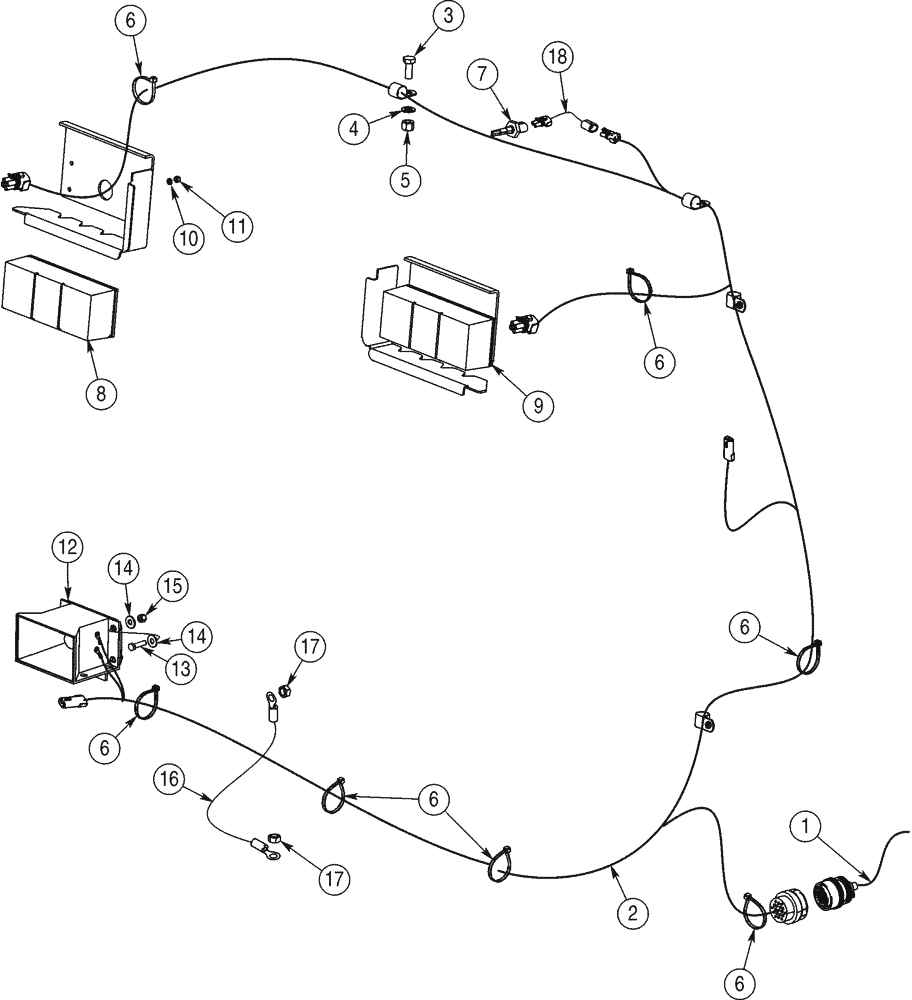

Запчасти Case 921C (04-30) - MOUNTING - BACKUP ALARM AND REAR LAMP (04) - ELECTRICAL SYSTEMS

North American Models JEE0126216-

1шт.

1

REF

INSTRUCTION

Harness, Rear Chassis, See Figure 04-17

1шт.

2

86985373

HARNESS

Rear Lamp

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

7шт.

7

419792A1

SENSOR

Coolant Level

1шт.

8

411777A1

LAMP, TAIL

LIGHT, TAIL Stop And Tail, Left Hand, See Figure 04-37

1шт.

9

411778A1

LAMP, TAIL

LIGHT, TAIL Stop And Tail, Right Hand, See Figure 04-37

1шт.

10

892-11005

LOCK WASHER,M5

8шт.

11

825-1405

NUT,M5, Cl 8

8шт.

12

D121972

ALARM

Backup

1шт.

13

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

14

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

8шт.

15

832-10406

NUT,M6 x 1, Cl 8

4шт.

16

448423A1

HARNESS

Ground

1шт.

17

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

2шт.

18

445786A1

WIRE HARNESS

Jumper

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
