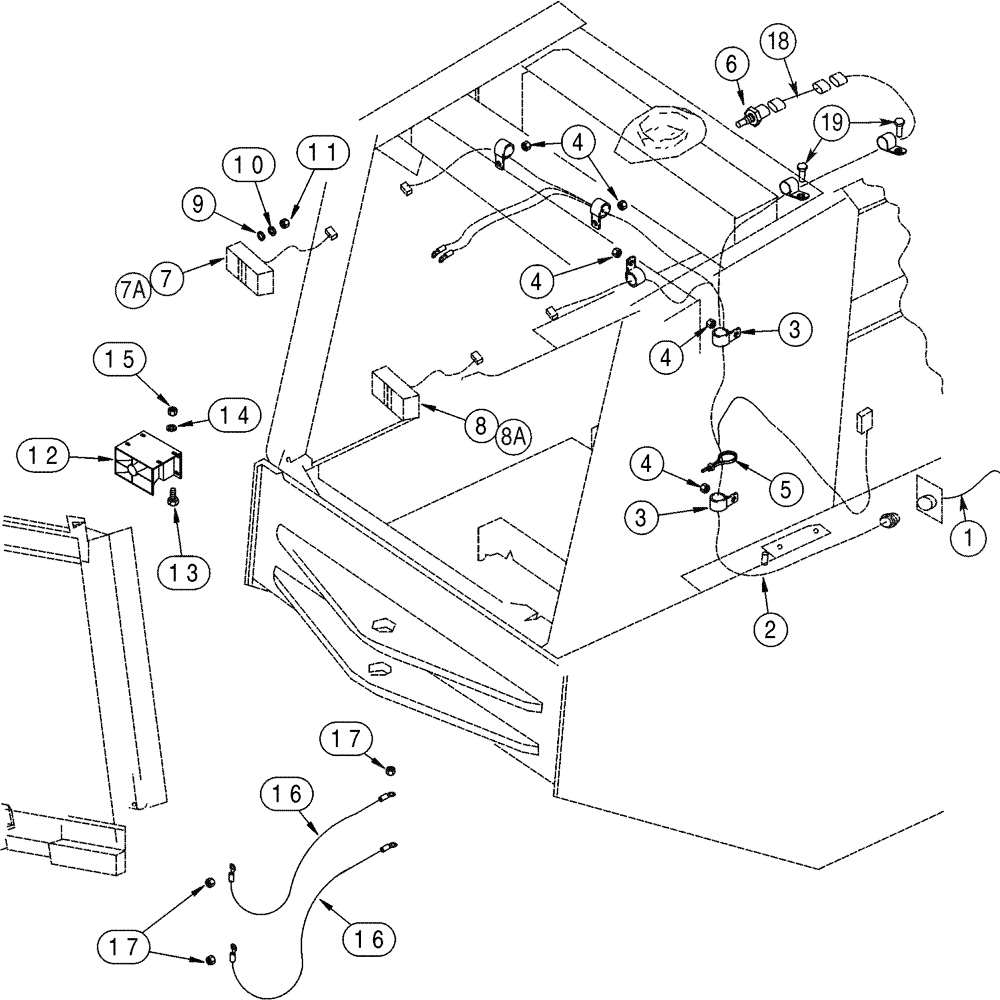

Запчасти Case 921C (04-29) - MOUNTING - BACKUP ALARM AND REAR LAMP (04) - ELECTRICAL SYSTEMS

North American Models -JEE0126215

1шт.

1

REF

INSTRUCTION

Harness, Rear Chassis, See Figure 04-17

1шт.

2

230865A2

HARNESS

Rear Lamp, Replaces 230865A1

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

6

419792A1

SENSOR

Coolant Level, Replaces 143417A2, 143417A3

1шт.

7

A187962

LAMP, TAIL

LIGHT, TAIL Stop And Tail, Left Hand, See Figure 04-37, No Longer Available, Order 411777A1

1шт.

7a

411777A1

LAMP, TAIL

LIGHT, TAIL Stop And Tail, Left Hand, See Figure 04-37

1шт.

8

A187961

LAMP, TAIL

LIGHT, TAIL Stop And Tail, Right Hand, See Figure 04-37, No Longer Available, Order 411778A1

1шт.

8a

411778A1

LAMP, TAIL

LIGHT, TAIL Stop And Tail, Right Hand, See Figure 04-37

1шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

If Used

8шт.

10

892-11005

LOCK WASHER,M5

8шт.

11

825-1405

NUT,M5, Cl 8

8шт.

12

D121972

ALARM

Backup

1шт.

13

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

14

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16, Replaces 495-11028

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

4шт.

16

253186A2

HARNESS

Ground

2шт.

17

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

3шт.

18

445786A1

WIRE HARNESS

Jumper

1шт.

19

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 x 3/4

2шт.
