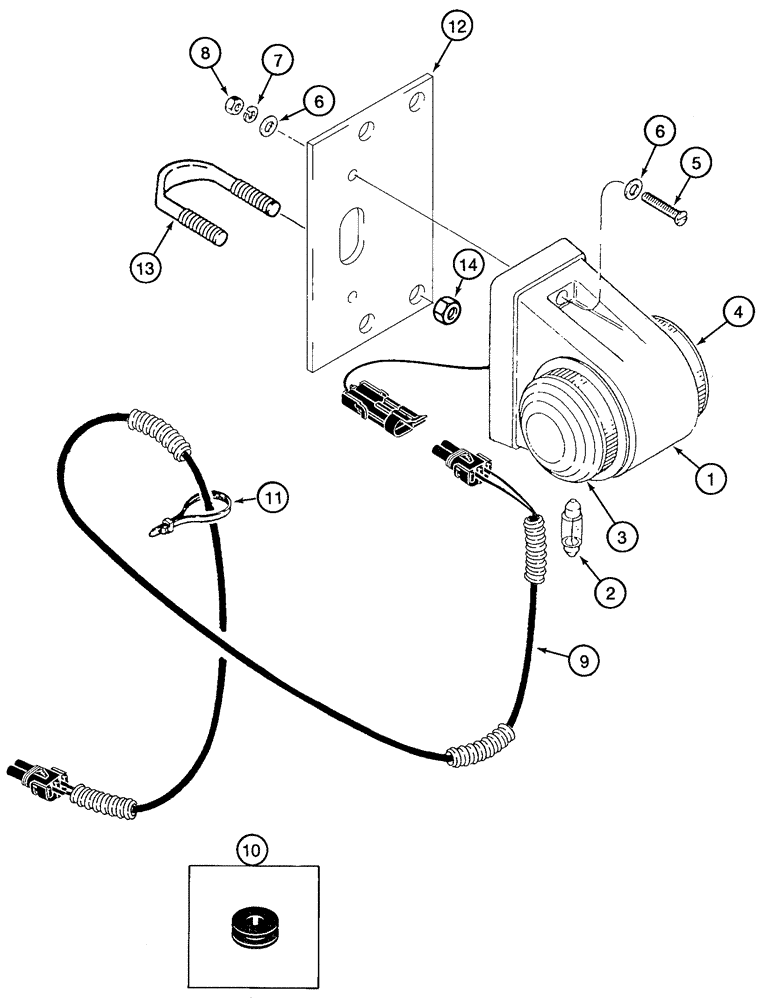

Запчасти Case 921C (04-28) - LAMPS - CLEARANCE, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

E133249

LIGHT,24V, 12W, Clear/Red

Clearance, Incl. 1 - 8, No Longer Used, Order 370784A1, 370785A1

4шт.

370784A1

LIGHT

Clearance, Rear, Incl. 1 - 8, Replaces E133249

4шт.

370785A1

LIGHT

Clearance, Front, Incl. 1 - 8, Replaces E133249

4шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

E136074

BULB

24V 5W

1шт.

3

E131567

LENS

Red

1шт.

4

E131568

LENS

Clear

1шт.

5

FE276

SCREW

3/16 x 40 mm

2шт.

6

FE4001

WASHER

5,3 mm

4шт.

7

FE4201

LOCK WASHER

5 mm

2шт.

8

FE2000

NUT

3/16 in

2шт.

9

E133131

HARNESS

Rear Lamps

2шт.

10

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

12

327564A1

LARGE PLATE

PLATE, LARGE

2шт.

13

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U" Replaces L78947

4шт.

14

231-1445

NUT,5/16"-18, GB

No Longer Used, Order 832-10408

8шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

Replaces 231-1445

8шт.
