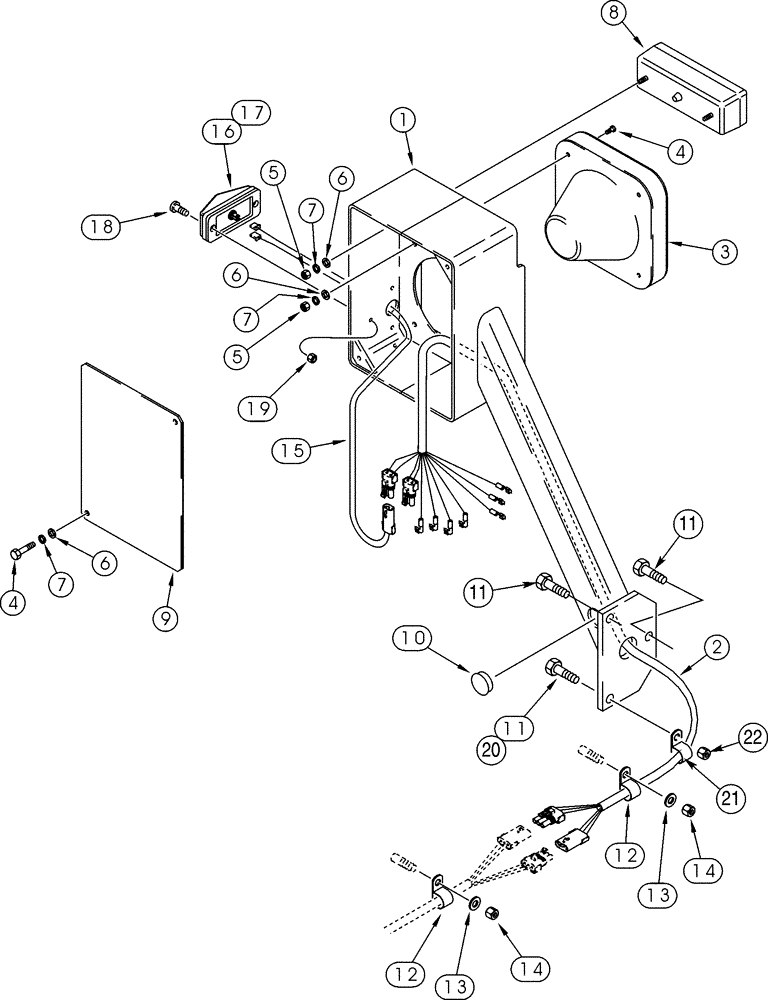

Запчасти Case 921C (04-25) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

E132215

SUPPORT

Front Lamp, Right HandNot Shown, No Longer Used, Order 349447A2

1шт.

1

349447A2

SUPPORT

Front Lamp, Right Hand, Not Shown, Replaces E132215

1шт.

1

E132216

SUPPORT

Front Lamp, Left Hand, No Longer Used, Order 349448A2

1шт.

1

349448A2

SUPPORT

Front Lamp, Left Hand, Replaces E132216

1шт.

2

279524A3

HARNESS

Front Lamp, Replaces 279524A2

2шт.

3

E133214

HEADLIGHT,Halogen, 24V, 70W

See Figure 04-26

2шт.

4

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

4-12шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4-12шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8-16шт.

7

892-11006

LOCK WASHER,M6

8-16шт.

8

E133215

TAIL LAMP

Turn Signal, See Figure 04-27

2шт.

9

E132226

LARGE PLATE

PLATE, LARGE

2шт.

10

353-422

PLUG,Dome, 1.250" hole, Nylon

2шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4-6шт.

12

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

14

231-1446

NUT,3/8" - 16, Gr 5

4шт.

15

195166A1

HARNESS

Side Flasher Lamp, If Used

2шт.

16

195164A1

LIGHT

Side Flasher Lamp, Incl. 17, If Used

2шт.

17

197102A1

BULB

1шт.

18

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

4шт.

19

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

21

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

2шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
