(04-24) - MOUNTING - LAMP, FRONT

Запчасти Case 921C (04-24) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS

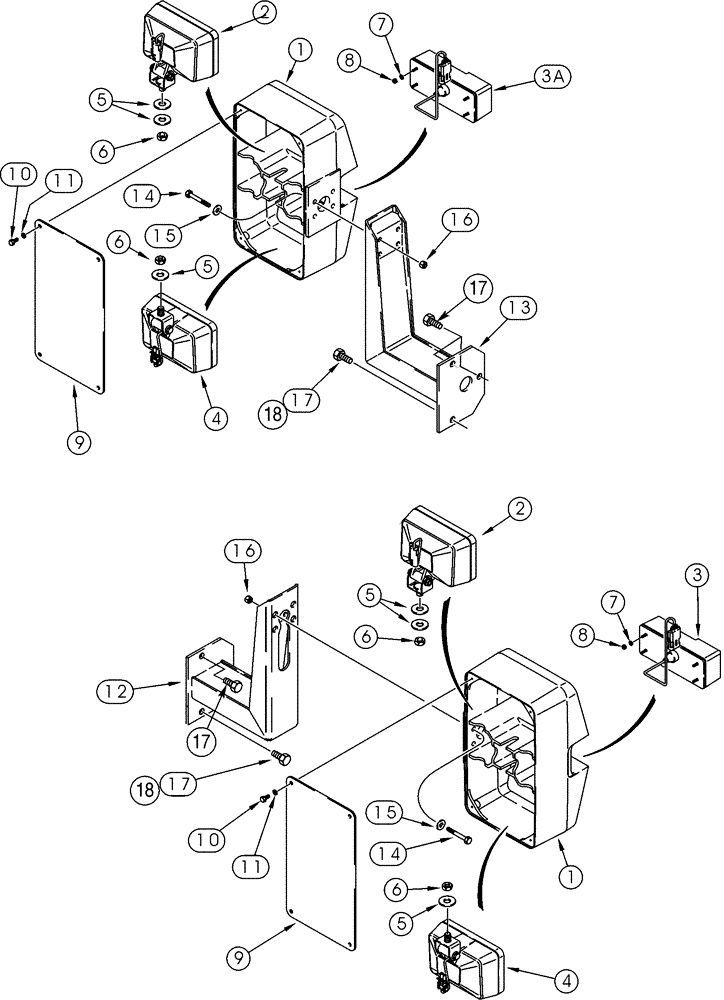

Схема запчастей Case 921C - (04-24) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS
5
5
17
18
14
6
5
5
6
15
11
10
1
8
16
7
15
4
6
17
17
18
11
7
3a
13
12
1
9
10
16
8
4
3
2
2
9
14
6
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

North America Only

1шт.

1

L126951

HOUSING

Lamp

2шт.

2

A187519

LIGHT ASSY.,24V, 70W, Clear

Driving, See Figure 04-36

2шт.

3

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn Signal and Flasher, Right Hand, See Figure 04-37

1шт.

3a

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn Signal and Flasher, Left Hand, See Figure 04-37, Not Shown

1шт.

4

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See Figure 04-36

2шт.

5

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

6шт.

6

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

7

892-11005

LOCK WASHER,M5

8шт.

8

825-1405

NUT,M5, Cl 8

8шт.

9

L126959

COVER

Lamp

2шт.

10

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

8шт.

11

492-11025

LOCK WASHER,1/4"

8шт.

12

328212A1

SUPPORT

Lamp, Right Hand

1шт.

13

328214A1

SUPPORT

Lamp, Left Hand

1шт.

14

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

8шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

8шт.

16

231-1445

NUT,5/16"-18, GB

8шт.

17

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4-6шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.
