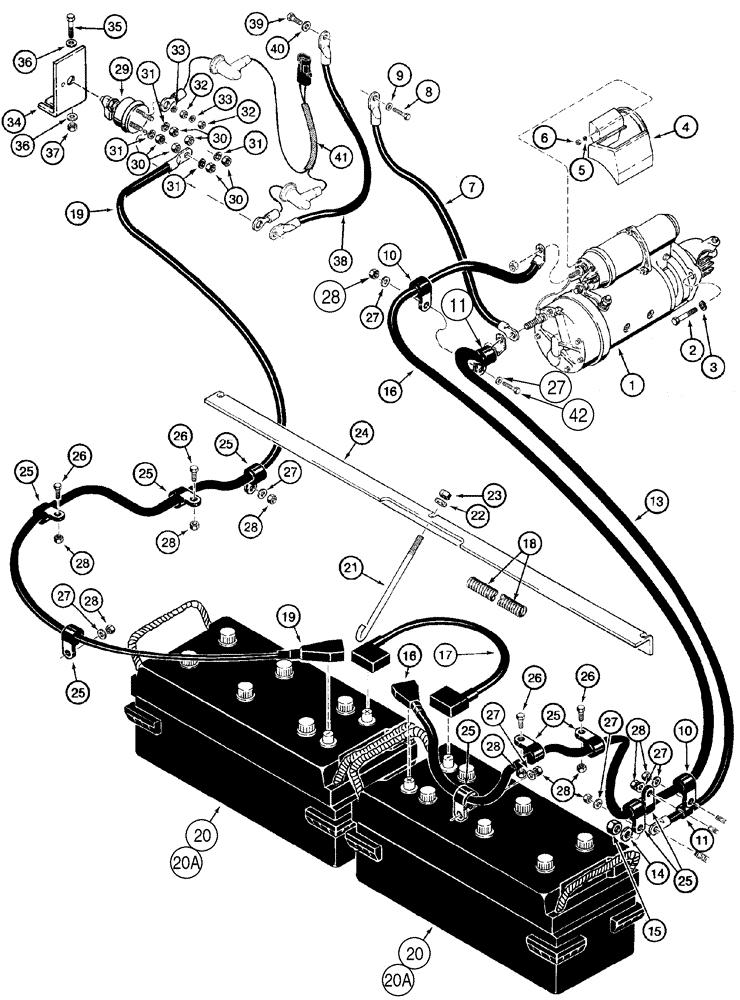

Запчасти Case 921C (04-22) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

*

All Models -JEE0126215

1шт.

1

L128521

STARTING MOTOR

24 V, See F

1шт.

1

LR128521

REMAN-STARTER

Remanufactured Starter

1шт.

1

LC128521

CORE-STARTER

Return Number

1шт.

2

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

3шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

4

L128826

SHIELD

If Used

1шт.

5

492-11010

LOCK WASHER,#10

1шт.

6

225-14210

NUT,#10-32

1шт.

7

239954A1

CABLE ASSY.

Ground, Battery To Starter

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

13

239955A1

CABLE ASSY.

1080 mm (42-1/2 in), Engine To frame

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

15

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

1шт.

16

239953A1

CABLE ASSY.

Battery To Starter

1шт.

17

239952A1

CABLE ASSY.

400 mm (15-3/4 in), Jumper, Battery To Battery

1шт.

18

248889A1

GUARD

1шт.

19

239956A1

CABLE ASSY.

Disconnect Switch

1шт.

20

BHC4DA

BATTERY, DRY

BATTERY DRY 12V, Heavy Duty, Service Replacement

2шт.

20a

BHC4DAW

WET BATTERY

12V, Standard, Service Replacement

2шт.

21

198185A1

TRUSS ROD,5/16" - 18 x 9.7"

3шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

3шт.

23

231-1445

NUT,5/16"-18, GB

3шт.

24

L129104

SUPPORT

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

9шт.

26

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

L126256

SWITCH

Disconnect Switch, Incl. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

Body

1шт.

30

129-187

NUT,5/16"-24, Brass

6шт.

31

492-11038

LOCK WASHER,3/8"

4шт.

32

131-573

NUT,#10-32

4шт.

33

492-11010

LOCK WASHER,#10

4шт.

34

105502A1

SUPPORT

1шт.

35

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

37

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

38

239868A1

CABLE ASSY.

Disconnect Switch

1шт.

39

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

40

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

41

L127676

WIRE HARNESS

Disconnect Switch

1шт.

42

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
