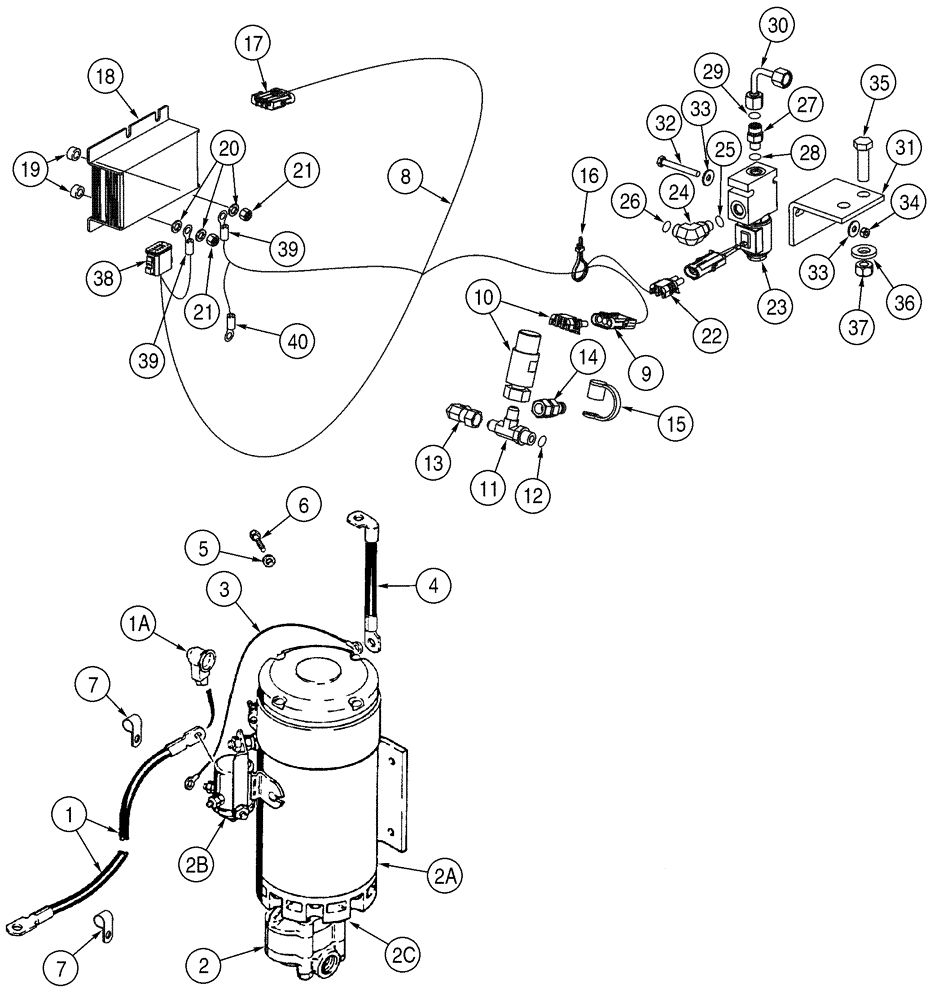

Запчасти Case 921C (04-21) - ELECTRICAL - STEERING, AUXILIARY JEE0125433- (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

248006A1

CABLE

Auxiliary Steering

1шт.

1a

L126713

BOOT

1шт.

197540A1

PUMP, HYDRAULIC

Auxiliary Steering, Incl. 2 - 3

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

2a

258042A1

MOTOR, ELECTRIC

1шт.

2b

258043A1

SOLENOID SWITCH

24V

1шт.

2c

258044A1

GASKET

1шт.

2d

258045A1

SEAL KIT

Steering Pump, Not Illustrated

1шт.

2e

S64612

BOOT

Not Illustrated

2шт.

3

NSS

NOT SOLD SEPARAT

Wire

1шт.

4

239955A1

CABLE ASSY.

1080 mm (42-1/2 in), Ground

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Use existing hardware

2шт.

8

407602A3

HARNESS

Auxiliary Steering

1шт.

9

245485C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

10

406398A1

SWITCH

Auxiliary Steering

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

14

101792A1

COUPLING

1шт.

15

H434163

DUST CAP

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

17

245487C1

ELEC CONNECTOR,Male, 4 Pin

Harness, Rear Chassis

1шт.

18

397040A3

MODULE

Auxiliary Steering

1шт.

19

D35859

SPACER

2шт.

20

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

3шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

245482C1

ELEC CONNECTOR,2 Pin

1шт.

23

413158A1

VALVE

Auxiliary Steering

1шт.

24

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Incl. 25, 26

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

27

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Incl. 28, 29

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

30

414857A1

TUBE

1шт.

31

414801A1

BRACKET

1шт.

32

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

33

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

34

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

35

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

36

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

37

829-1412

NUT,M12, Cl 10.9

2шт.

38

225389C1

CONNECTOR, ELEC

CONNECTOR

1шт.

39

1964706A1

Terminal

2шт.

40

1964703A1

Terminal

1шт.
