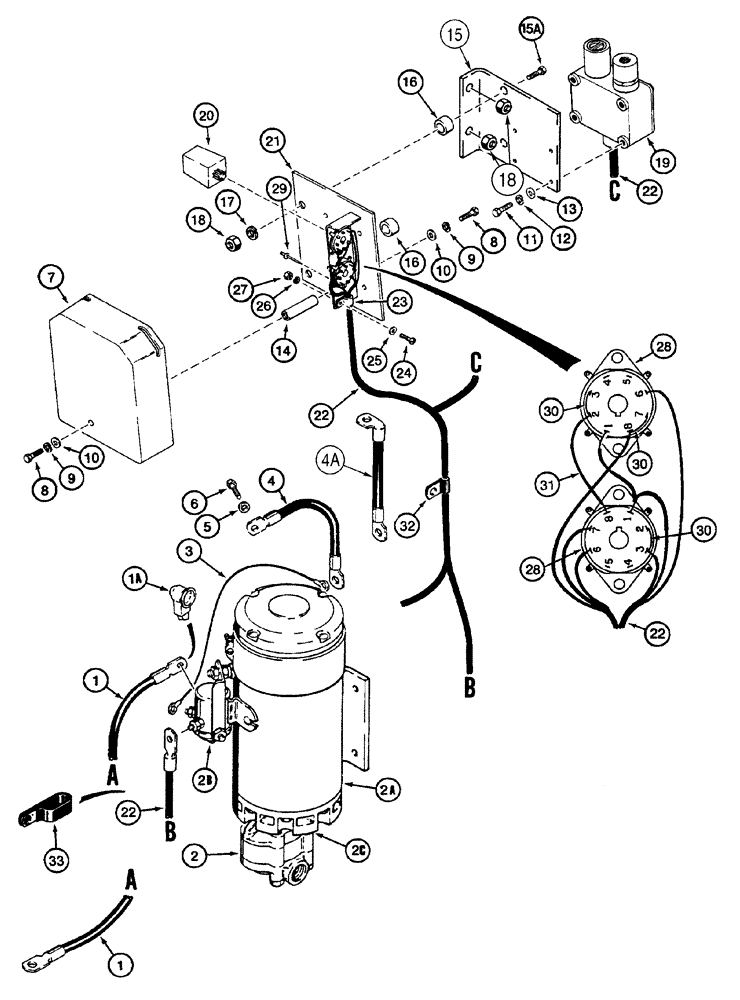

Запчасти Case 921C (04-20) - ELECTRICAL - STEERING, AUXILIARY -JEE0125432 (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

248006A1

CABLE

Auxiliary Steering

1шт.

1a

L126713

BOOT

1шт.

197540A1

PUMP, HYDRAULIC

Auxiliary Steering, Incl. 2 - 3

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

2a

258042A1

MOTOR, ELECTRIC

1шт.

2b

258043A1

SOLENOID SWITCH

24V

1шт.

2c

258044A1

GASKET

1шт.

2d

258045A1

SEAL KIT

Steering Pump, Not Illustrated

1шт.

2e

S64612

BOOT

Not Illustrated

2шт.

3

NSS

NOT SOLD SEPARAT

Wire

1шт.

4

278999A1

CABLE ASSY.

Ground, No Longer Used, Order 239955A1

1шт.

4a

239955A1

CABLE ASSY.

1080 mm (42-1/2 in), Ground, Replaces 278999A1

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

7

L114612

COVER

1шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

9

492-11025

LOCK WASHER,1/4"

2шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

11

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

12

492-11025

LOCK WASHER,1/4"

4шт.

13

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

14

253065A1

SPACER

1шт.

15

243555A1

SUPPORT

Pressure Switch

1шт.

15a

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

16

D44696

BUSHING

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

L126826

IGNITION SWITCH

Auxiliary Steering

1шт.

20

L113460

RELAY,24V

Auxiliary Steering

2шт.

254159A1

CONNECTOR, ELEC

CONNECTOR Relay, Incl. 21 - 31

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket

1шт.

22

254158A1

HARNESS

1шт.

23

L73526

CLAMP

Harness

1шт.

24

140-104

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

1шт.

25

495-21019

WASHER,#8

1шт.

26

492-11008

LOCK WASHER,#8

1шт.

27

225-14108

NUT,#8-32

1шт.

28

L57132

SOCKET

2шт.

29

151-526

RIVET,Pop, 1/8" x .337"

1/8 x 9/32

4шт.

30

L70845

ELECTRICAL WIRE

WIRE

3шт.

31

NSS

NOT SOLD SEPARAT

Wire

2шт.

32

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

33

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

2шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
