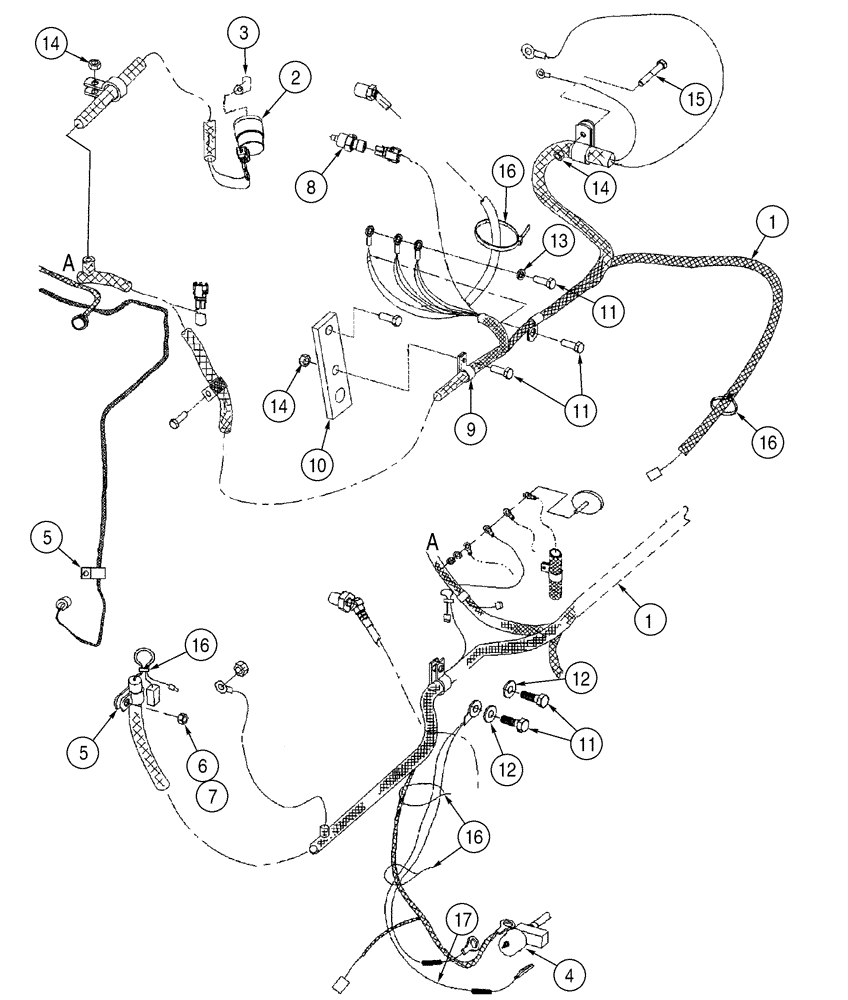

Запчасти Case 921C (04-15) - HARNESS, REAR (04) - ELECTRICAL SYSTEMS

Engine and Transmission

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

If Used

1шт.

Also See Figure 08-14

1шт.

1

440793A2

HARNESS

Engine and Transmission, If Used

1шт.

2

293797A1

RESTRICTION SWITCH

Air Cleaner

1шт.

3

221-365

ELBOW,45 Degree, 1/8" NPT

1шт.

4

404224A1

SENDER UNIT

SENDER Engine Oil Pressure

1шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

321446A1

SENSOR

Engine Temperature

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

10

451823A1

PLATE

1шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

5шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

17

404222A1

ELECTRICAL WIRE

WIRE Ground

1шт.

15

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
