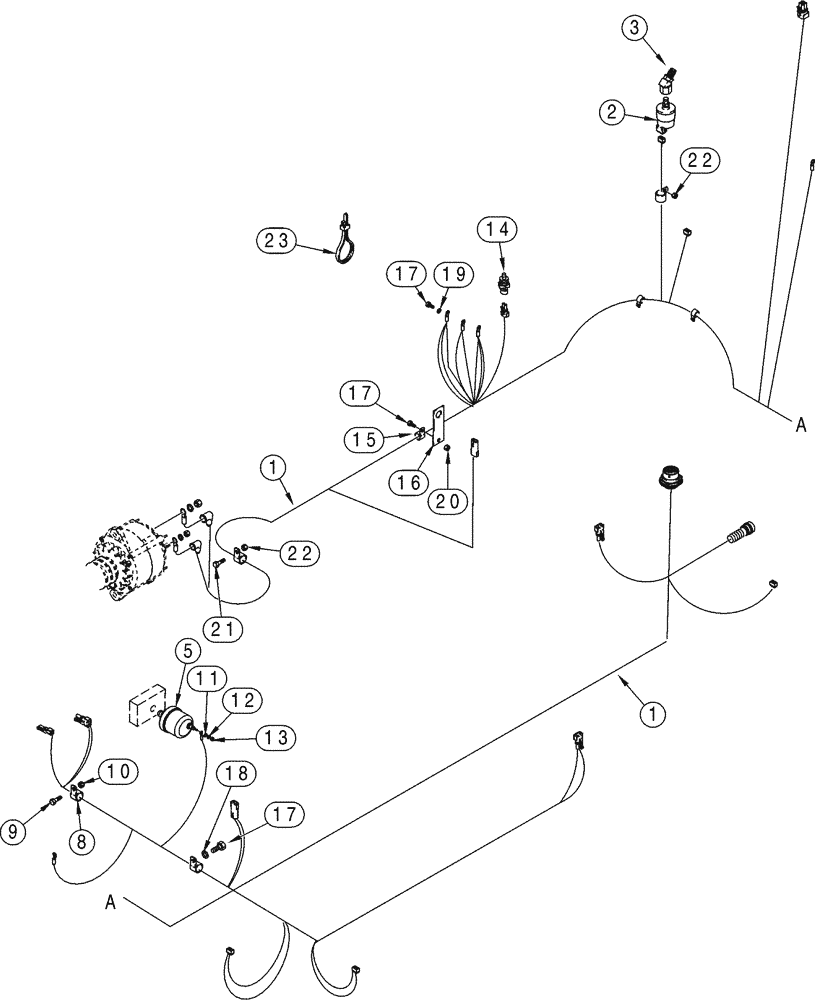

Запчасти Case 921C (04-14) - HARNESS, REAR (04) - ELECTRICAL SYSTEMS

Engine and Transmission

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

If Used

1шт.

Also See Figure 08-15

1шт.

1

230867A4

HARNESS

Engine and Transmission, Replaces 230867A1, 230867A2, 230867A3

1шт.

2

293797A1

RESTRICTION SWITCH

Air Cleaner

1шт.

3

221-365

ELBOW,45 Degree, 1/8" NPT

1шт.

5

358040A2

SENDER UNIT

SENDER Engine Oil Pressure, Replaces 253041A1, 358040A1, No Longer Available, Order 404224A1, 404222A1, 627-10020, 895-18010, See Page(s) 4-49B

1шт.

8

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64

1шт.

12

492-11010

LOCK WASHER,#10

1шт.

13

225-20210

NUT,#10-32, Brass

1шт.

14

321446A1

SENSOR

Engine Temperature

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

16

L129245

SUPPORT

1шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

19

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

21

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
