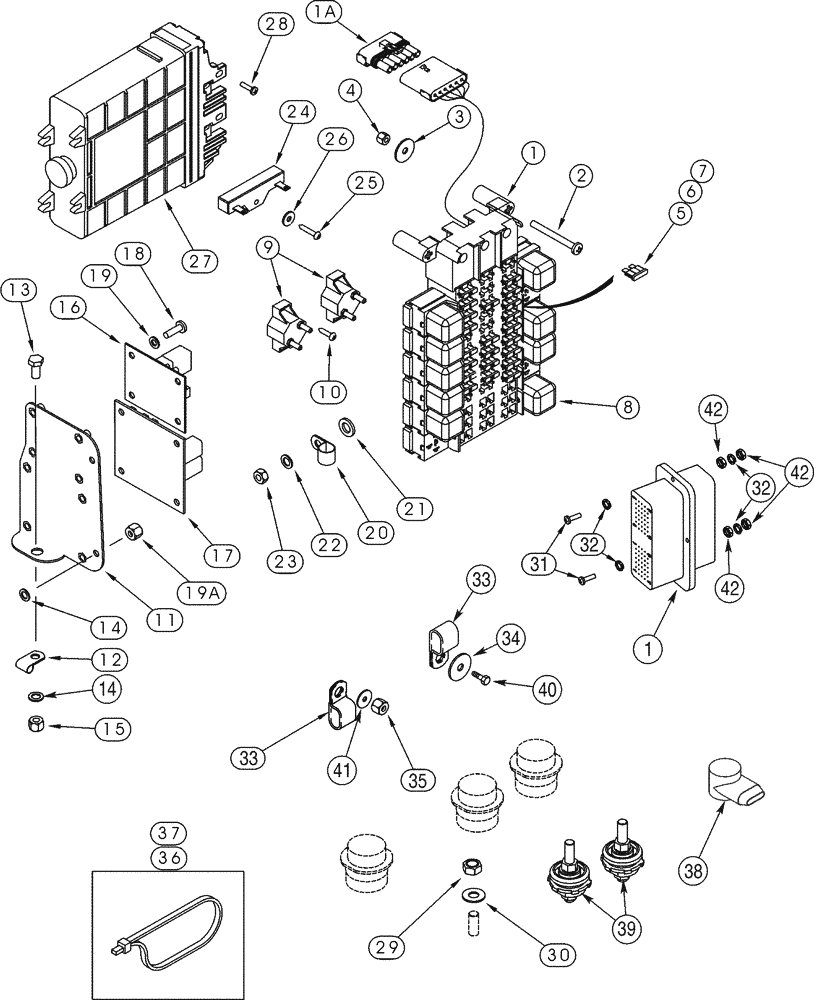

Запчасти Case 921C (04-12) - HARNESS - CANOPY, MAIN (04) - ELECTRICAL SYSTEMS

*

Power Distribution Center

1шт.

*

North America Only

1шт.

1

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

1

429188A2

HARNESS

Cab Main, Replaces 429188A1, JEE0125746-

1шт.

1a

A187813

DIODE

1шт.

2

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

3шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

Replaces 832-10406

1шт.

5

A149798

FUSE

5 amp, Tan

12шт.

6

A149800

FUSE,10 Amp

10 amp, Red

4шт.

7

A149799

FUSE

7,5 amp, Brown

4шт.

8

326845A1

RELAY,24V

24V

9-10шт.

9

S243558

CIRCUIT-BREAKER,12.5A

2шт.

10

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

4шт.

11

249152A3

BRACKET

Replaces 249152A2

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

Replaces 515-2395

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

232363A1

MODULE

Power Off Timer

1шт.

17

232364A1

FLASHER UNIT

No. 10

1шт.

18

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

Replaces 840-1620

8шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

19a

832-10406

NUT,M6 x 1, Cl 8

2шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

24

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

25

760-14325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

26

895-25005

WASHER,M5 x 15 x 1.6

1шт.

27

296764A1

MODULE

Transmission Control, -JEE0125745

1шт.

27

296764A1R

REMAN ELECT CONTROL

921C CASE WHEEL LOADER (S/N JEE0155000 & BEFORE), Transmission Control, -JEE0125745 (1/99-)

1шт.

27

296764A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

408552A2

MODULE

Transmission Control, JEE0125746-

1шт.

408552A4R

REMAN ELECT CONTROL

921C S/N JEE0155000 & BEFORE (1/99-), Reman for New P/N 408552A2

1шт.

408552A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

28

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

4шт.

29

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

1шт.

30

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

31

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

Replaces 840-1414

4шт.

32

892-11004

LOCK WASHER,M4

Replaces 895-11004

8шт.

33

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

34

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

37

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

38

357906A1

BOOT

1шт.

39

319055A1

JUNCTION BLOCK

2шт.

40

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

41

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

42

824-1404

NUT,M4, Cl 5

8шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Replaces 895-15006

1шт.
