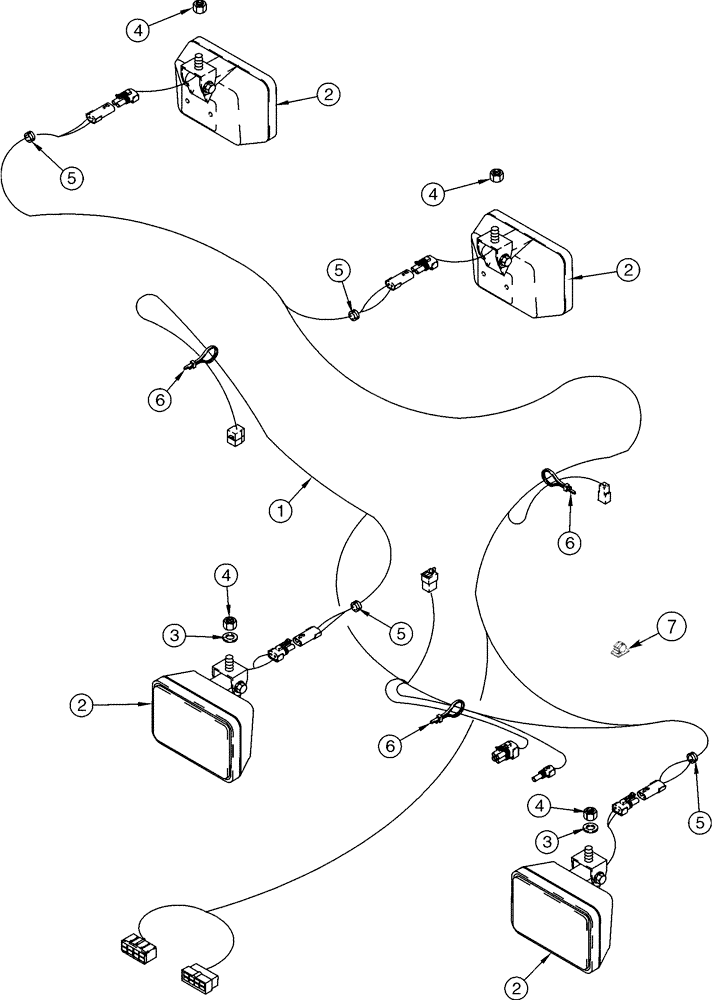

Запчасти Case 921C (04-11) - HARNESS - CANOPY ROOF (04) - ELECTRICAL SYSTEMS

North America Only

1шт.

1

238764A2

WIRE HARNESS

Canopy Roof, Replaces 238764A1

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See Figure 04-36

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces 896-15012

2шт.

4

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

5

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Replaces 248-2399

4шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

1шт.

7

169850C2

CABLE CLIP

Adhesive Back

2шт.
