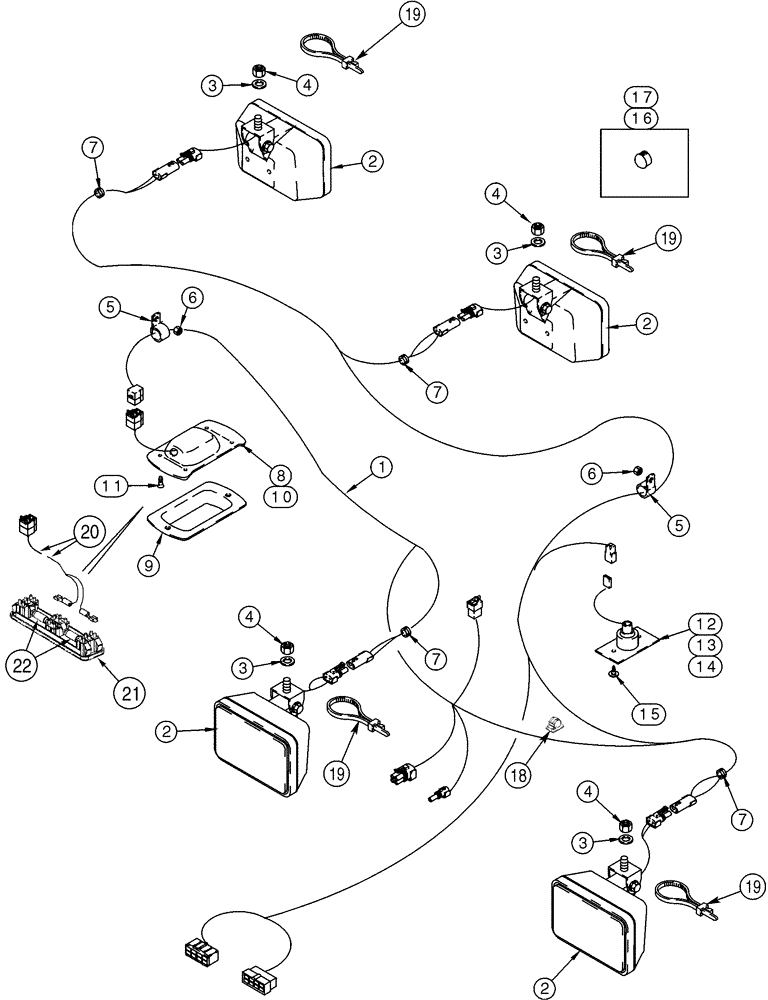

Запчасти Case 921C (04-08) - HARNESS - CAB ROOF (04) - ELECTRICAL SYSTEMS

1

238764A2

WIRE HARNESS

Cab Roof, Replaces 238764A1

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See See Figure 04-36

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces 896-15012

2шт.

4

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

5

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

2шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

7

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

No Longer Used, Order 248-1237

4шт.

7

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Replaces 248-2399

4шт.

245659C91

LAMP

24V, Dome, Incl. 8, 9, No Longer Used, Order 20 - 21

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

225929A1

LENS

1шт.

10

456602

BULB,2C2R, #1692, 28V

24V

1шт.

11

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

2 x 22 mm

4шт.

241521A1

COURTESY LIGHT

DOME LIGHT Courtesy, Incl. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Body

1шт.

13

107329C1

WIRE HARNESS

1шт.

14

27727R1

BULB,C2F, #464, 28V

1шт.

15

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

3шт.

16

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

17

353-421

PLUG,Dome, .187" hole, Nylon

1шт.

18

169850C2

CABLE CLIP

2шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

20

388482A1

WIRE HARNESS

Domelight

1шт.

21

394799A1

LIGHT ASSY.,24 /28V, W

24V, Domelight, Incl. 22, Replaces 245659C91

1шт.

22

395185A1

BULB,24V, 10W

24V

2шт.
