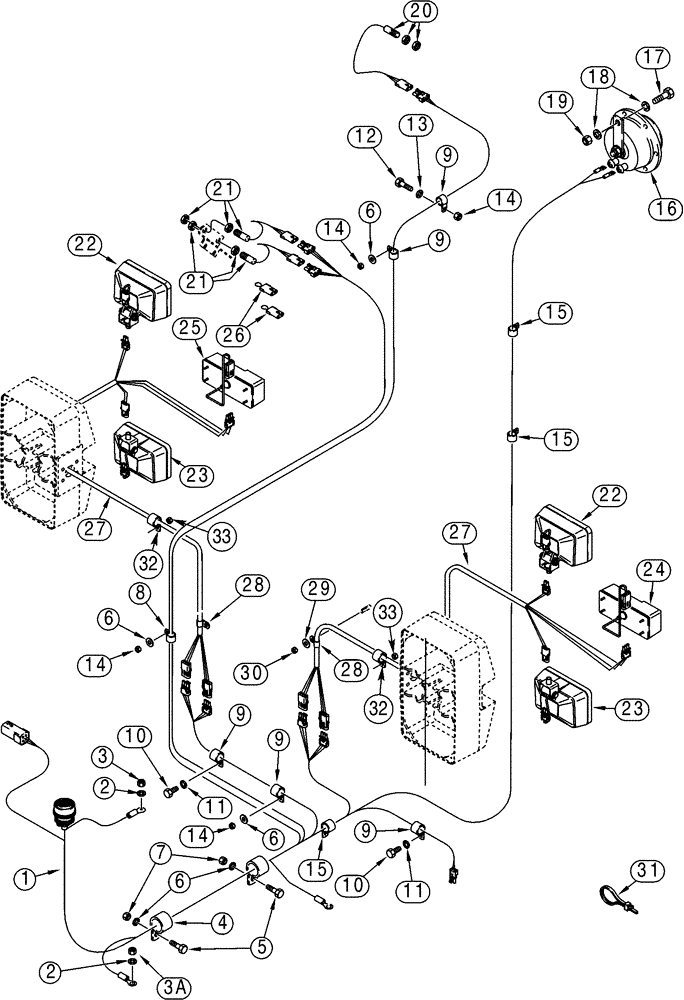

Запчасти Case 921C (04-06) - HARNESS, FRONT - LAMPS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

231518A2

HARNESS

Front, No Longer Available, Order 231518A3

1шт.

1

231518A3

HARNESS

Front, Replaces 231518A2

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

1шт.

3a

L127555

NUT,Hex, 3/8" - 16

3/8, Brass

1шт.

4

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

Front

1шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

5шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

No Longer Used, Order 515-2395

4шт.

9

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Replaces 515-23159

4шт.

10

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

No Longer Used, Order 426-616

1шт.

12

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Replaces 426-624

1шт.

13

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

14

231-1446

NUT,3/8" - 16, Gr 5

4шт.

15

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

16

251444A1

ASSEMBLY

300 HZ

1шт.

17

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

18

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

1шт.

20

1546497C1

SWITCH

Return To Dig, Includes Hardware

1шт.

21

1546498C1

SWITCH

Height Control, Return-To-Transport, Includes Hardware

2шт.

22

A187519

LIGHT ASSY.,24V, 70W, Clear

Driving, See Figure 08-36

2шт.

23

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See Figure 08-36

2шт.

24

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn Signal and Flasher, Right Hand, See Figure 08-37

1шт.

25

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn Signal and Flasher, Left Hand, See Figure 08-37

1шт.

26

L127785

HARNESS

Jumper, Use When Height Control and Return-To-Transport Option Is Not Used

2шт.

27

238176A1

HARNESS

Extension

2шт.

28

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

No longer used, Order 515-23127

4шт.

28

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Replaces 515-23222

4шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

30

231-1446

NUT,3/8" - 16, Gr 5

4шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

32

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
