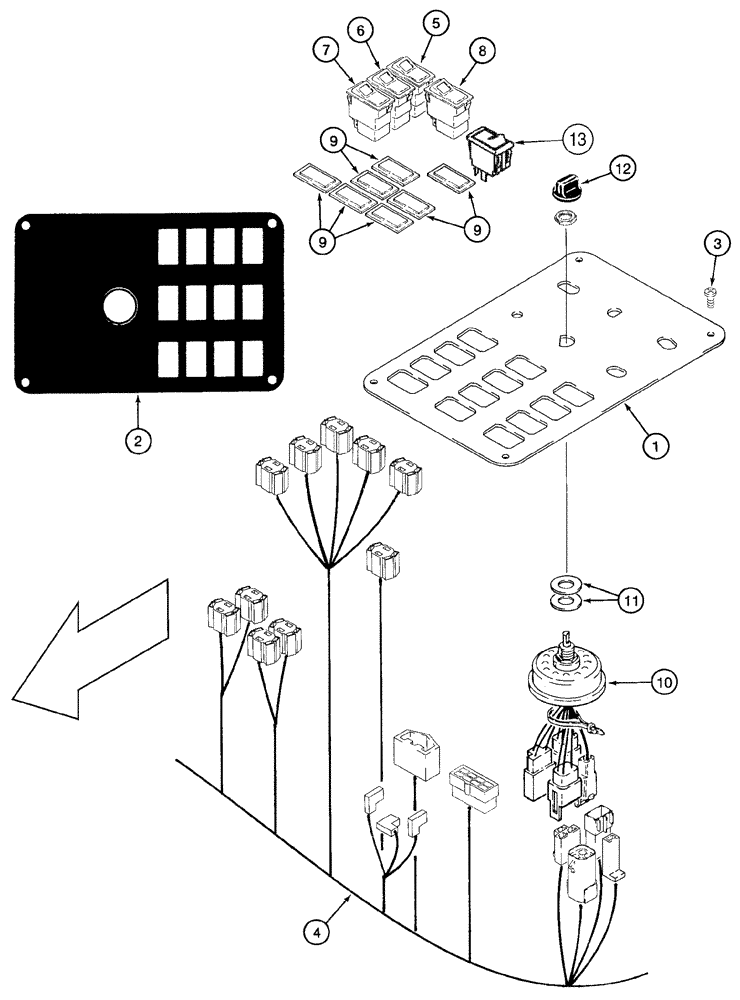

Запчасти Case 921C (04-05) - PANEL, CONTROL (04) - ELECTRICAL SYSTEMS

With Canopy

1шт.

North America Only

1шт.

1

197377A2

CONTROL PANEL

Replaces 197377A1

1шт.

2

283426A1

DECAL

Canopy Switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Replaces 940-1412

4шт.

4

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

4

429188A2

HARNESS

Cab Main, Replaces 429188A1, JEE0125746-

1шт.

5

234196A1

SWITCH

Declutch, -JEE0125745

1шт.

5

374421A4

SWITCH

Declutch, JEE0125746-

1шт.

6

234205A1

SWITCH

Detent, -JEE0125745

1шт.

6

374422A2

SWITCH

Detent, JEE0125746-

1шт.

7

234206A1

SWITCH

Return To Travel, -JEE0125745

1шт.

7

374427A2

SWITCH

Return To Travel, JEE0125746-

1шт.

8

234949A1

SWITCH

Trans, Auto, -JEE0125745

1шт.

8

374431A2

SWITCH

Trans, Auto, JEE0125746-

1шт.

9

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

7шт.

10

1994716C1

LIGHT SWITCH

Lamp

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

12

1994720C1

KNOB

Control

1шт.

13

400834A1

SWITCH

Transmission Enable

1шт.

Note: See arrow on illustration for front direction of machine

1шт.

Nota : Voir la flèche sur l'illustration pour la direction avant de la machine.

1шт.

Nota: Mirar la flecha en la ilustración para averiguar cuál es la parte delantera de la máquina.

1шт.
