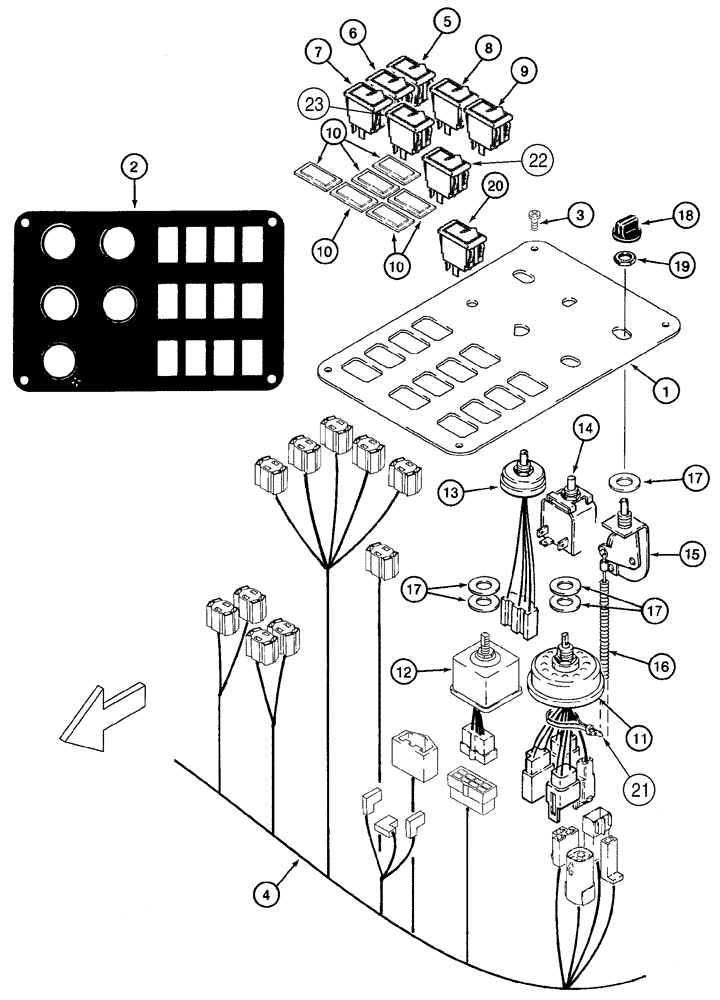

Запчасти Case 921C (04-04) - PANEL, CONTROL (04) - ELECTRICAL SYSTEMS

With Cab

1шт.

1

197377A2

CONTROL PANEL

Replaces 197377A1

1шт.

2

283423A1

DECAL

Cab Switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Replaces 940-1412

4шт.

4

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 24101A4, -JEE0125745

1шт.

4

429188A2

HARNESS

Cab Main, Replaces 429188A1, N.A. Only, JEE0125746-

1шт.

4

430210A1

HARNESS

Cab Main, Europe Only, JEE0126216-

1шт.

5

234196A1

SWITCH

Declutch, -JEE0125745

1шт.

5

374421A4

SWITCH

Declutch, JEE0125746-

1шт.

6

234205A1

SWITCH

Detent, -JEE0125745

1шт.

6

374422A2

SWITCH

Detent, JEE0125746-

1шт.

7

234206A1

SWITCH

Return To Travel, -JEE0125745

1шт.

7

374427A2

SWITCH

Return To Travel, JEE0125746-

1шт.

8

234949A1

SWITCH

Trans, Auto, -JEE0125745

1шт.

8

374431A2

SWITCH

Trans, Auto, JEE0125746-

1шт.

9

234195A1

SWITCH

Rear Wiper And Washer, -JEE0125745

1шт.

9

374429A2

WINDSHIELD WIPER SWI

Rear Wiper And Washer, JEE0125746-

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

5-6шт.

11

1994716C1

LIGHT SWITCH

Lamp

1шт.

12

197952A1

SWITCH

Windshield Wiper Front

1шт.

13

92100C2

SWITCH

Blower Motor

1шт.

14

A187954

SWITCH

SWITCH - thermostat

1шт.

250742A1

ELECTRIC CABLE

Incl. 15, 16

1шт.

15

1954651C2

CONTROL

1шт.

16

250739A1

CABLE,510mm L

1шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

5шт.

18

1994720C1

KNOB

Control

4-5шт.

19

109311H

JAM NUT

7/16 NF

1шт.

20

234207A1

SWITCH

Rear Fog Lamp, If Used

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

400834A1

SWITCH

Transmission Enable

1шт.

23

441552A1

SWITCH

Economy, Europe Only

1шт.

Note: See arrow on illustration for front direction of machine

1шт.

Nota : Voir la flèche sur l'illustration pour la direction avant de la machine.

1шт.

Nota: Mirar la flecha en la ilustración para averiguar cuál es la parte delantera de la máquina.

1шт.
