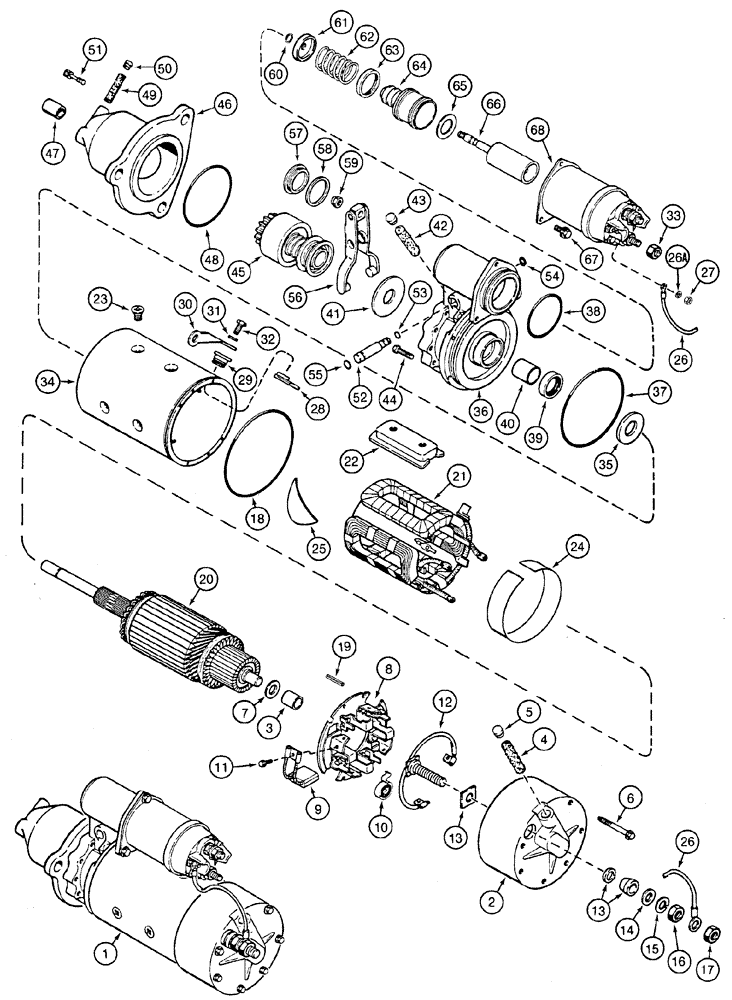

Запчасти Case 921C (04-02) - STARTER ASSY (04) - ELECTRICAL SYSTEMS

1

L128521

STARTING MOTOR

24 V, Incl. 2 - 68, For Mounting, See Figure 04-22, 04-23

1шт.

1

LR128521

REMAN-STARTER

Remanufactured Starter

1шт.

1

LC128521

CORE-STARTER

Return Number

1шт.

2

A187561

COVER

Commutator End, Incl. 3 - 5

1шт.

3

A40868

BUSHING

1шт.

4

A49769

WICK

Oil Wick

1шт.

5

A49573

PLUG

1шт.

6

A187511

CAPTIVE WASHER SCREW

With Washer and Seal

6шт.

7

95-81175

WASHER,0.69" ID x 1.12" OD x 0.11" Thk

11/16 x 1-1/8 x 1/8

1шт.

8

A49778

BRUSH ASSY.

1шт.

9

A49777

COMMUTATOR BRUSH

4шт.

10

A49575

SPRING

4шт.

11

A47894

SCREW,#8 - 32 x 5/16"

4шт.

12

A49764

TERMINAL CONNECTOR

1шт.

A187513

KIT

Brush, Incl. 6, 9 - 11, 18

1шт.

A187514

KIT

Bushing, Incl. 3 - 7, 18, 35, 37 - 43, 47 - 50

1шт.

13

A49768

KIT

Terminal, Commutator End

1шт.

14

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

33/64 x 7/8 x 1/16

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

A47890

NUT

1/2

1шт.

18

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

20

A49770

ARMATURE

1шт.

21

A49776

COIL ASSY.

1шт.

22

R15115

SHOE

4шт.

23

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

8шт.

24

A49767

RUBBER INSULATOR

1шт.

25

A41977

RUBBER INSULATOR

2шт.

26

A47895

ELECTRICAL WIRE

WIRE Field Coil, Serial Range: Terminal-Solenoid

1шт.

26

492-11010

LOCK WASHER,#10

1шт.

27

129-667

NUT,#10-32, LH

1шт.

A187513

KIT

Brush, Incl. 6, 9 - 11, 18

1шт.

A187514

KIT

Bushing, Incl. 3 - 7, 18, 35, 37 - 43, 47 - 50

1шт.

A187515

KIT

Shift Lever, Incl. 18, 38, 48, 52, 53, 55, 56, 58, 59

1шт.

28

A49501

RUBBER INSULATOR

1шт.

29

A49500

RUBBER INSULATOR

1шт.

30

A49779

TERMINAL CONNECTOR

1шт.

31

A42100

WASHER

1шт.

32

10497770

BOLT,Torx Hd, 1/4" - 20

1/4 NC x 35/64

1шт.

33

A47890

NUT

1/2

1шт.

34

NSS

NOT SOLD SEPARAT

Frame

1шт.

35

A40892

WASHER

13/16 x 1-3/4 x 3/16

1шт.

36

A49772

HOUSING

1шт.

37

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

38

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

39

R21582

OIL SEAL

1шт.

40

A49765

BUSHING

1шт.

41

A185121

WASHER

1шт.

42

A49567

WICK

Oil Wick

1шт.

43

A49573

PLUG

1шт.

44

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

1/4 NF x 1

5шт.

A187513

KIT

Brush, Incl. 6, 9 - 11, 18

1шт.

A187514

KIT

Bushing, Incl. 3 - 7, 18, 35, 37 - 43, 47 - 50

1шт.

A187515

KIT

Shift Lever, Incl. 18, 38, 48, 52, 53, 55, 56, 58, 59

1шт.

45

20-1343T1

DRIVE ASSY.

1шт.

46

A49773

HOUSING

1шт.

47

A47257

BUSHING

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

1шт.

49

A47888

WICK

Oil Wick

1шт.

50

A47889

PLUG

1шт.

51

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

5/8 x 7/8

1шт.

52

A42199

PIN

1шт.

53

A47259

O-RING,0.244" ID x 0.391" OD

1шт.

54

100-1137

SNAP RING,#37, Ext

1шт.

55

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

56

A49775

LEVER

1шт.

57

R21587

PLUG

1шт.

58

A41924

GASKET

1шт.

59

131-489

LOCK NUT,5/16"-24, G8

5/16 NF

1шт.

60

100-1137

SNAP RING,#37, Ext

1шт.

61

A43419

SEAT

1шт.

62

A41242

SPRING

1шт.

63

A43380

BACK-UP RING

1шт.

64

A49589

BOOT

1шт.

65

A41922

WASHER

1шт.

66

A49757

PLUNGER

1шт.

67

10497770

BOLT,Torx Hd, 1/4" - 20

1/4 NC x 35/64

3шт.

68

1546546C1

SOLENOID

See Figure 04-03

1шт.

A187514

KIT

Bushing, Incl. 3 - 7, 18, 35, 37 - 43, 47 - 50

1шт.

A187515

KIT

Shift Lever, Incl. 18, 38, 48, 52, 53, 55, 56, 58, 59

1шт.
