(03-07) - CONTROLS - THROTTLE, FOOT

Запчасти Case 921C (03-07) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

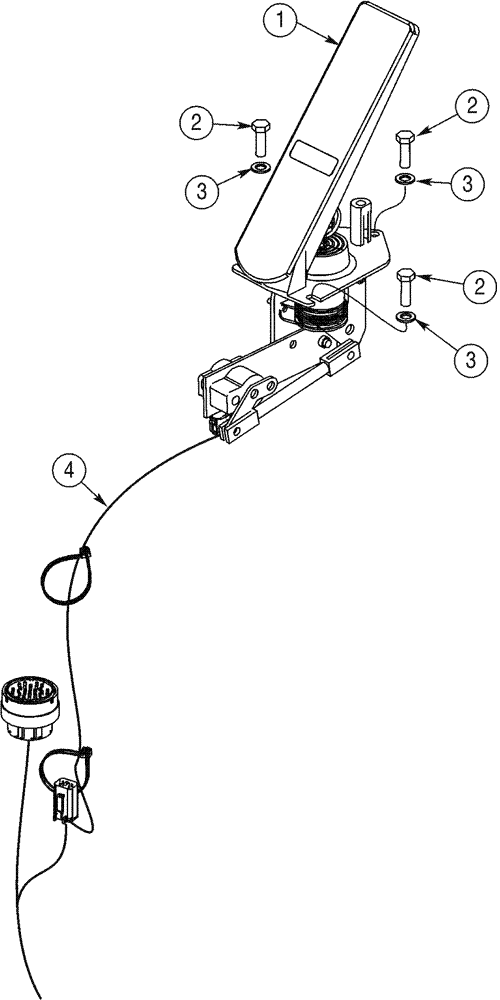

Схема запчастей Case 921C - (03-07) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM
2
3
3
1
2
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

European Models JEE0126216-

1шт.

1

431155A1

ACCELERATOR

Component Parts Not Available at Time of Printing

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

430240A2

HARNESS

Engine and Transmission, See Figure 04-16

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.
