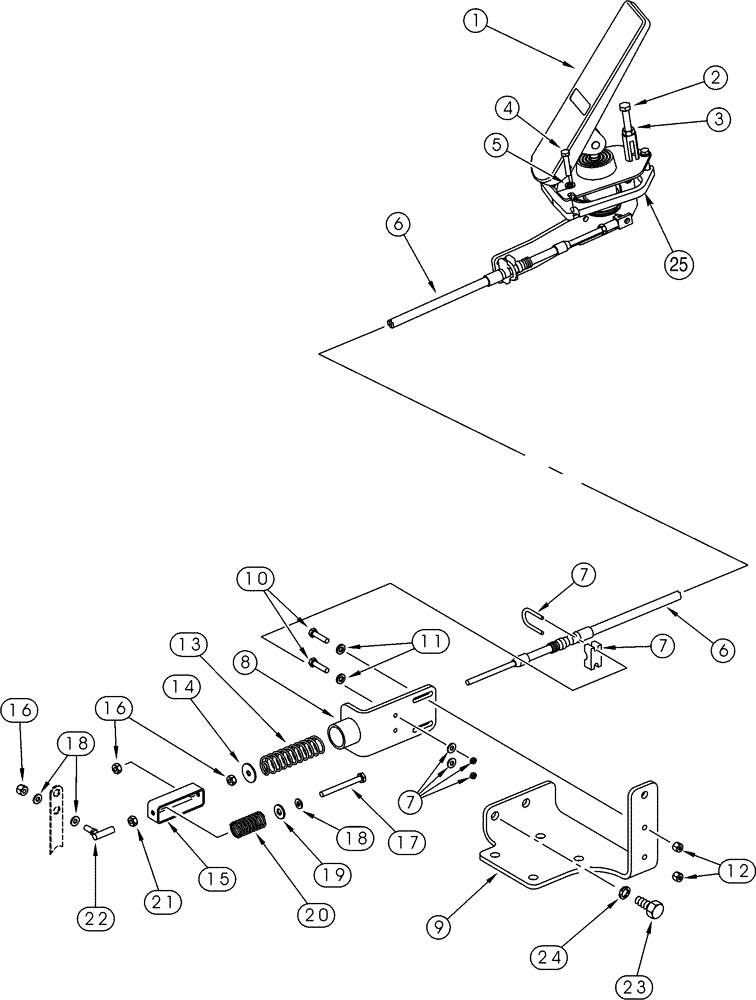

Запчасти Case 921C (03-06) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

All North American Models

1шт.

European Models -JEE0126215

1шт.

1

295157A1

PEDAL ASSY.

See Figure 03-08

1шт.

2

627-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9, Full Thd

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

4

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

Replaces 827-6030

3шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

6

296103A1

BOWDEN CONTROL

1шт.

7

259529A1

CLAMP BRACKET

Includes Hardware

1шт.

8

256892A1

SUPPORT

1шт.

9

256698A1

SUPPORT

1шт.

10

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

11

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

D136113

SPRING

Return

1шт.

14

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

15

259530A1

STIRRUP

Spring

1шт.

16

425-114

NUT,1/4"-28, G5

3шт.

17

63-61040

SCREW,Hex Hd, #10-32 x 2 1/2"

No. 10 NF x 2-1/2

1шт.

18

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

19

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

1шт.

20

L129280

SPRING

1шт.

21

231-24109

LOCK NUT,#10-32, GB

No. 10 NF

1шт.

22

A76747

BALL JOINT,#10 -32 x 7/8" L

1шт.

23

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

234124A2

PLATE

1шт.
