Запчасти Case 921C (09-74) - DECALS (09) - CHASSIS

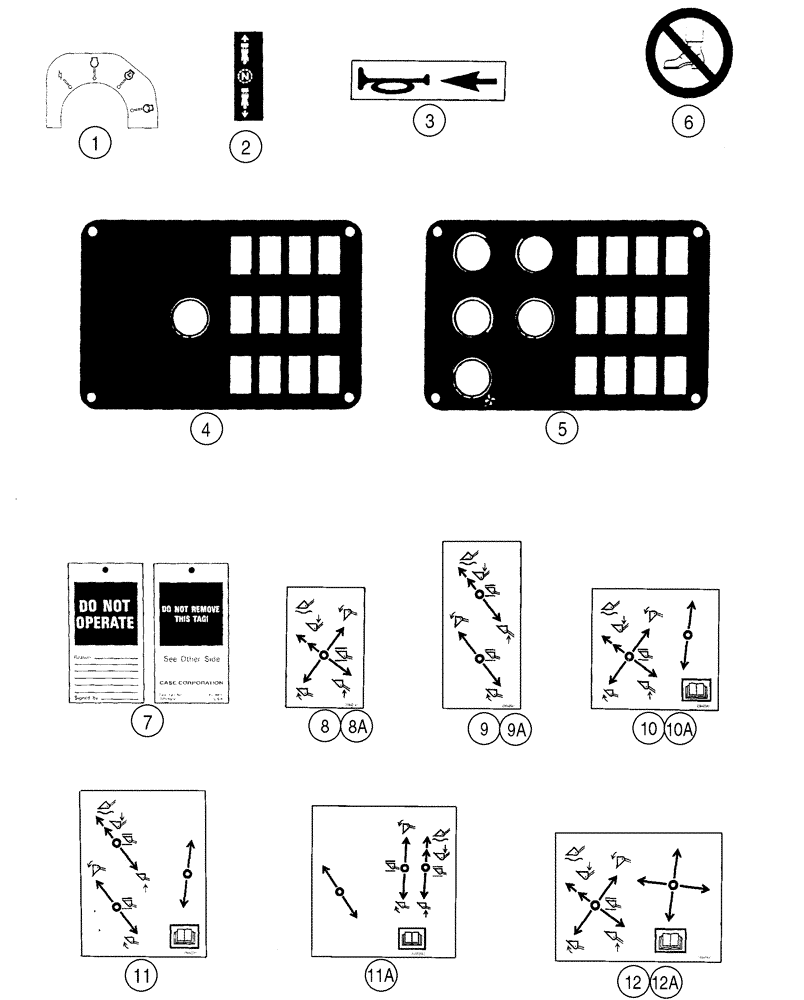

Схема запчастей Case 921C - (09-74) - DECALS (09) - CHASSIS
5
12
6
8a
12a
9a
10a
2
10
4
8
11
7
9
1
3
11a

Артикул

Название

Примечание

Количество

North America and Europe

1шт.

1

318764A1

DECAL

Ignition Switch Pattern, Gray

1шт.

1

409155A1

DECAL

Ignition Switch Pattern, Tan

1шт.

2

1987168C1

DECAL

Direction/Speed

1шт.

3

195274A1

DECAL

Horn

1шт.

4

283426A1

DECAL

Canopy Switches, North America Only

1шт.

5

283423A1

DECAL

Cab Switches, Heating and Air Conditioning

1шт.

5a

283424A1

DECAL

Cab Switches, Heater, North America Only, Not Illustrated

1шт.

6

E134402

DECAL

No Step

3шт.

7

321-4614

TAG

1шт.

8

256421A1

DECAL

Single Lever, Two Spool, If Used

1шт.

8a

256421A2

DECAL

Single Lever, Two Spool, If Used

1шт.

9

256420A1

DECAL

Dual Lever, Two Spool, If Used

1шт.

9a

256420A2

DECAL

Dual Lever, Two Spool, If Used

1шт.

10

256423A1

DECAL

Dual Lever, Three Spool, If Used

1шт.

10a

256423A2

DECAL

Dual Lever, Three Spool, If Used

1шт.

11

256422A1

DECAL

Three Lever, Three Spool, If Used

1шт.

11a

376629A2

DECAL

Three Lever, Three Spool, If Used

1шт.

12

256424A1

DECAL

Dual Lever, Four Spool, If Used

1шт.

12a

256424A2

DECAL

Dual Lever, Four Spool, If Used

1шт.

Выбрано товаров: 20
